Yanhua Mini ACDP Test Report: Read data for Volvo XC60 KVM No issues!

Purpose:

Check Yanhua Mini ACDP read Volvo XC60 KVM or not

Preparation:

Yanhua Mini ACDP sets

Volvo IMMO key programming module (module 12)

Module 12 Feacture:

Supports 5-button remote key add key and all keys lost
Supports 6-button smart key add key and all keys lost

Volvo S60 (2010-2018)
Volvo S80 (2009-2016)
Volvo XC60 (2009-2018)
Volvo V60 (2011-2017)
Volvo V70 (2009-2016)
Volvo XC70 (2010-2016)

Procedure:

Remove the Volvo KVM module according to the prompts in the picture

Note: Volvo KVM module is located on the right side of the trunk

Disassemble the KVM module

Prepare the ACDP, OBP+ICP adapter, KVM interface board and 20 PIN line

D1-D4 regional figual and picture of each test point location

Install the KVM interface board according to the registration point D1-D4

Connect the KVM module and ACDP host

Open Mini ACDP APP

Select “Volvo”-> “XC60 (2009-2018)”-> “Full-Keyless”-> “Read KVM Password”

Follow the prompt to connect all the devices well

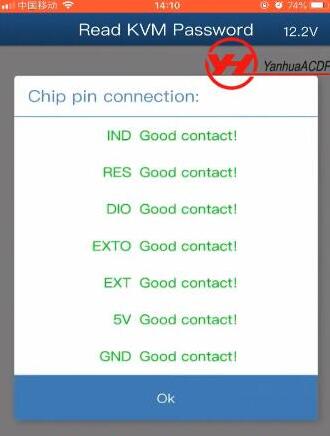

Detecting Pin…

Passed Pin detection

If not, need to clean the corresponding test point

Click “OK” to continue

Decrypting the chip…

Reading chip data…

Check the VIN, then click “Continue”

Click “OK” to save the KVM password data

Confirm the KVM data storage path

Result: Yanhua Mini ACDP with module 12 read KVM password success!

That’s all! Hope it helps you.
