Yanhua mini ACDP programming master: This is for those looking for a decent auto key programming & odometer correction tool for BMW, VAG, Porsche, Jaguar and Land Rover. Here, you can find all, from programmer buying guide to real programming tests with instuctions and images.

Yanhua mini acdp user manual:

in detail…

acdp programmer for sale

yanhua mini acdp programming master is a perfect auto key programmer for BMW, VAG, Porsche, Jaguar and Land Rover.

  • mini acdp full kit:

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-key-programmer-with-all-module.html

the full kit support BMW, VAG, Porsche, Jaguar and Land Rover key programming

  • mini acdp BMW:

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-master-bmw-full-package.html

support CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+/FEM/BDC key programming

read & write BMW DME ISN Code by OBD

read & write BMW 35080, 35160DO WT

refresh BMW Keys

program FRM

  • mini acdp Porsche:

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-porsche-key-programmer.html

support Porshe MY2010-2018

add new keys with a working key

program new key when all keys are lost

  • mini acdp Jaguar and Land Rover:

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-land-rover-module-for-jlr-immo.html

support KVM from 2014-2018

add new keys with a working key

program new key when all keys are lost

Note: Land Rover KVM (mc9s12xeq384 112Pin) confirmed!

mini acdp best price

 it depends.

the price will be a bit different, depending on which version you have.

the full kit is the most expensive but the most cost-effective and powerful.

mini acdp Android app download and install

mini acdp Android app download: https://www.pgyer.com/acdp

or scan the QR Code to download acdp app

2 Click on the icon in the top right corner showed in the picture and open it in the corresponding browser.

3 Tab the icon to start  acdp  install installation

mini acdp iOS app download and install

1 mini acdp iOS app download: https://www.pgyer.com/MiniACDP

or scan the QR Code to download acdp app

2 Tab on the icon in the top right corner showed in the picture and open it in the Safari browser.

3 Tab to install acdp ios app

4 Go to General – Setting

5 Select “Device Management”

6 Select the option shown below to add as a “trust device”

mini acdp how to use

step-by-step instructions will help you program new keys with acdp.

look here: acdp test on MQB, KVM, CAS…. both dashboard and immobilizer function tested

– tests on immobilizers

acdp mini MQB

acdp mini Jaguar Land Rover KVM

mini acdp bmw cas3

mini acdp bmw cas3+

mini acdp bmw cas4

mini acdp bmw cas4+

mini acdp bmw bdc

– test on the dashboard

mini acdp bmw odometer correction

mini acdp bmw vs. vvdi2 bmw

Product

Yanhua mini ACDP BMW

Xhorse VVDI2 BMW

Features

Has no issues in BMW CAS and FEM/BDC

Works perfect in VAG and BMW Immo

Diagnostic

No

VVDI2 work for VAG diagnostic only, not BMW

Key Programming

CAS: YES!

CAS1

CAS2

CAS3/CAS3+

CAS4/CAS4+

CAS: YES!

CAS1

CAS2

CAS3/CAS3+

CAS4/CAS4+

EWS: NO!

Yanhua ACDP cannot work with ESW modules



EWS: YES!

EWS1

EWS2

EWS3

EWS4

FEM/BDC

FEM/BDC

Odometer Correction

Yes

Yes

Module Programming

Yes

Yes

Data Backup

Yes

Yes

Note that “Module Programming” here doesn’t refer to read ECU data and write data to the new ECU. You can read “Module Programming” as FEM/BDC odometer correction & module repair, DME read/write ISN codes, M35XX programming, CAS2 OBD mode, CAS3/CAS3+ module OBD mode, CAS4/CAS4+ (Mask 1L15Y, 5M45H/1N35H)

mini acdp bmw vs. cgdi bmw

Features/Tools

Yanhua Mini ACDP BMW

CGDI BMW

Highlight

No need to remove chip!

No need soldering!

No need to cut the line!

No need to lift the pin!

OBD key program!

Run faster!

Test a lot = Safety!

Workable interface

Mobile with Android or iOS

PC or Laptop

Connection

Wifi connection to a mobile

Wired connection to a PC

Update

Free and online update by scanning the QR code

Free and online update in http://www.cgprogcar.com/

Tokens

No need tokens

No need tokens

Note: It’s necessary to buy
Tokens if it’s CGDI-MB.

Method

OBD

OBD

Key programming

CAS1: Yes

CAS2: Yes

CAS3: Yes

CAS3+: Yes

CAS4: Yes

CAS4+: Yes

FEM/BDC: Yes

CAS1: Yes

CAS2: Yes

CAS3: Yes

CAS3+: Yes

CAS4: Yes

CAS4+: Yes

FEM/BDC: Yes

Odometer correction

Yes

NO

F series coding

NO

Yes

EGS ISN reading

NO

Yes

Activation/Adapter

ACDP needs adapters to work with.

You should buy different adapters for various modules:

CAS1-4+ immo;

FEM/BDC immo & dashboard;

FRM footwell module (0L15Y 3M25J);

35080, 35160DO WT Eeprom.

And you should have another adapter to read ISN;

adapter to read DME ISN (when all keys are lost);

adapter to renew key.



Btw, you can get a Mini ACDP FULL kit.

CGDI doesn’t need adapter to work with.

But you need another programmer to read modules, need a cable to read DME ISN from MSV and MSD

And you should get authorization for some functions:

BWM FEM/BDC Authorization



If you are not equipped with soldering knowledge & rich experience and don’t have another tool to read modules, Yanhua ACDP can be a good helper.

For personal use, you’re advised to have a Mini ACDP main unit and the adapter for your BMW.

For auto repair, have a Mini ACDP FULL kit = have all for BMW key making and module programming.

If you are looking for a reliable tool for safety and speed, CGDI BMW is the best solution. Tools from chinacardiags.com is tested before delivery, and more and more cars are tested by professionals there.

yanhua mini acdp review

1. nice tool again. I assume almost zero support and tested on only one car with one exact sw version. Beta of the beta.

2. currently im only doing bmw with cas 1-3 and ews my lonsdor can do cas 1-3 it will only add keys to 3+ and up. I just dont like to solder so I figured this too would simplify things abit and make it faster

3. I got it since a week and i am excited

M35080 Programming needs some improvements, there are some bugs (tested on 4 dashs, and its better to desolder)
Serial EEP 24XX, 25XX, 93XX, 95XX works like a charm (but tested on only 3 Eeps)
Tried several CAS4 to Read with out any problems, Mileage reset works too
CAS3 tested only 1 but readed without problem

On a nother group they reported to create succesfully keys on FEM/BDC and CAS4

4. I just get it.
Reading eprom cas4 and make a key for f11 so far done.
Cant say much more.
cas4 reading eprom compared with vvdi reading and its matching 100%

5. All other 35080/160 are possible, like all other programmer can do also.
ACDP is also working with smartphone tethering so a router is not a must.
Didn’t test if it works offline,

Fem key making and mileage reset is confirmed by other users in WhatsApp group,
I can confirm mileage reset cas3/3+/4, key making cas3/3+, key 868mhz refresh
and frm programming

But sometimes it’s tricky to place the probes correctly, it’s faster to use other programmer
until you have figured out how to place probes correctly

6. I have it and have had it for more than 3 months now.
It works perfect on all CAS types and for AKL but for FEM and BDC it still has a long way to go.
Its also compitable via bluetooth so not only wifi is needed.
Its a great and small tool, easy to use, compared to VVDI, R70, Upa and etc.

7. for FEM/BDC with isn or key make, you have to use module 2. For 35160/35080 BMW dashboard mileage correction, you need to get module 4.

8. Tested the Mini ACDP here with 4 CAS3 and one CAS4+ without any problems. For the first CAS3 I needed more than 5 minuntes to place the pins correctly but after some experiences I needed only 30 seconds for everything. Important is that you use the small screw tools to clean the contacts.

For FEM/BDC I use my Autohex II and for eeproms my other stuff like R27, Codiprog USB mk2 and Orange5.

CU Oliver

9. something good to share: For FEM/BDC, 3 months ago, it needed FEM electric bridges to complete. Now update Mini ACDP to the newest version, it won’t need the electric bridges any more, it is easy to use.

10. I had issues with ACDP at first. Although they were very helpful, and sent a replacement it did not fix my issue so I returned it. After months of reading people successfully using it I tried again and this time it worked. I have used it to make a key for cas3 and cas4. Turned out a adapter on the first one was defective but they didn’t replace that part just sent me a new ACDP unit so that was the reason of the issues on my first one. It’s a great tool but I only use it for cas4 no solder and it make a cas4 no downgrade.

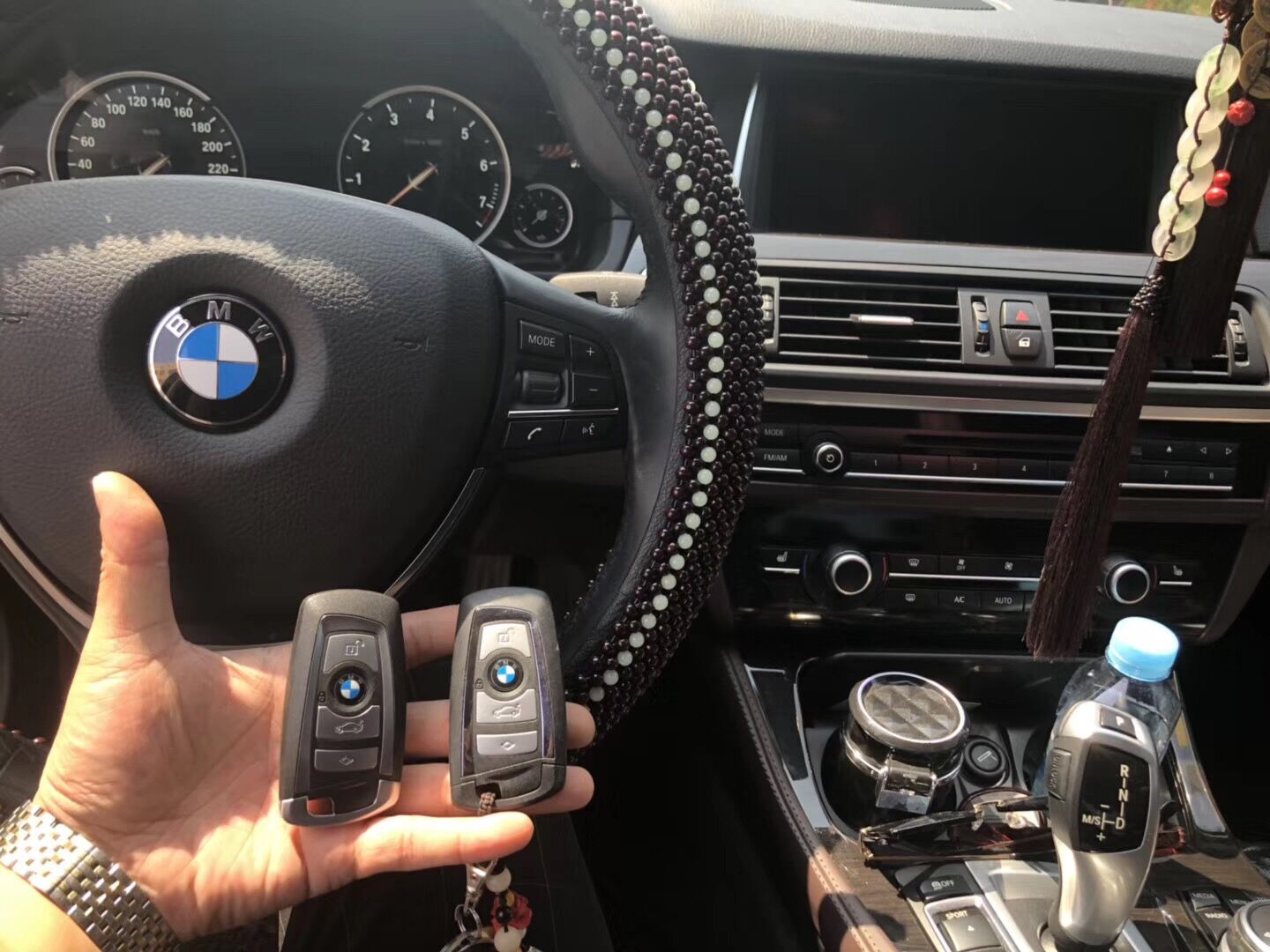

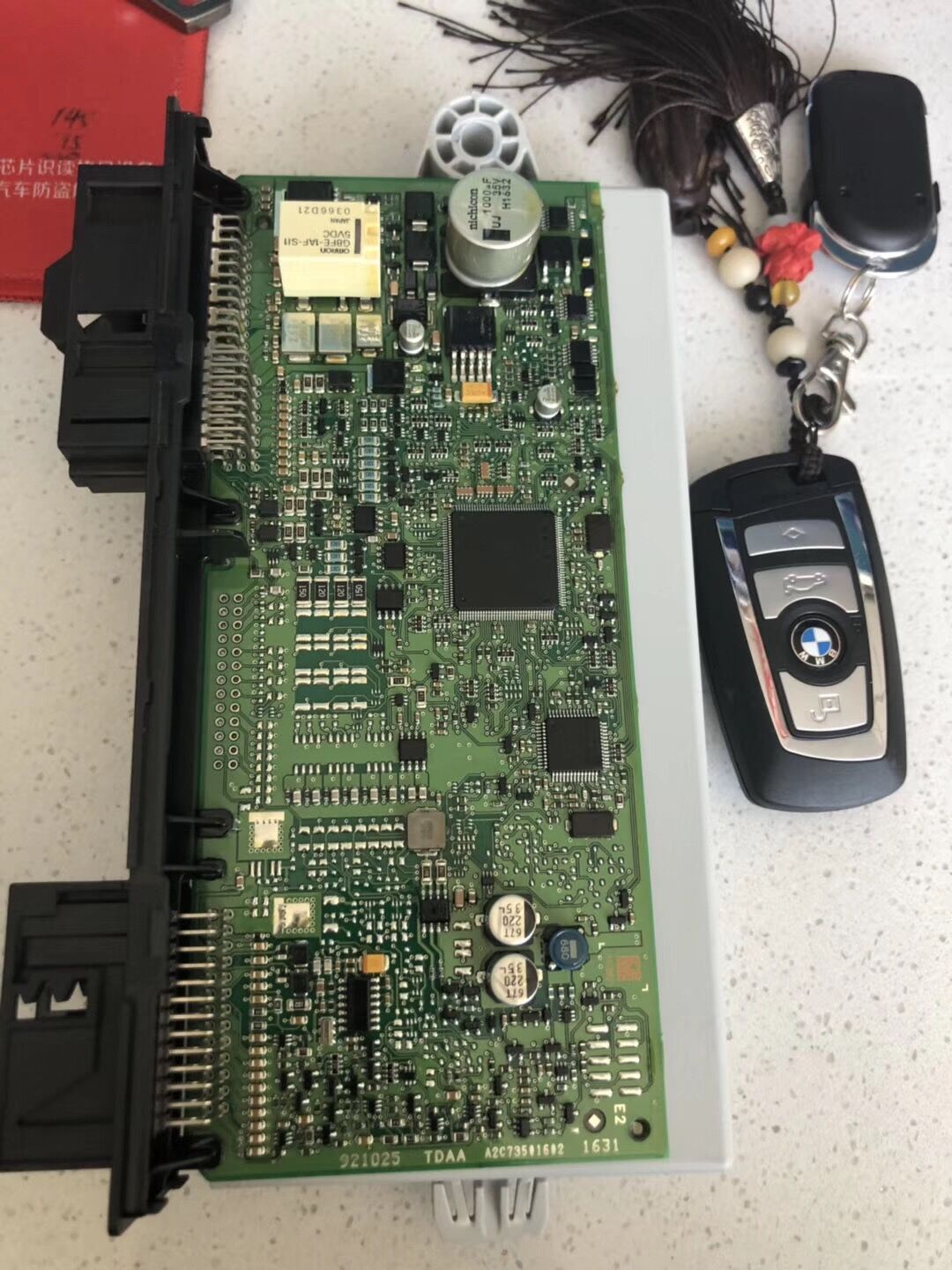

11. BMW 5 series CAS4 2015 OK.

Pictures mean a lot

 more acdp reviews will be updated here….

much appreciated if you share your experience

yanhua mini acdp car list

  • BMW CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+/FEM/BDC
  • Porsche MY2010-2018
  • Jaguar and Land Rover KVM from 2014-2018

yanhua mini acdp forum

1. https://www.digital-kaos.co.uk/

2. https://cartechnology.co.uk/

3. https://carline.ru/forum/

Top 3 forums if you wanna look for something about acdp from real users or pros.

mini acdp full modules

Module Name Image Function
Basic Module Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming(ICP). This module is a necessary basic configuration for other module.
CAS  Module  Yanhua mini acdp master module 1 (1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
(2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.

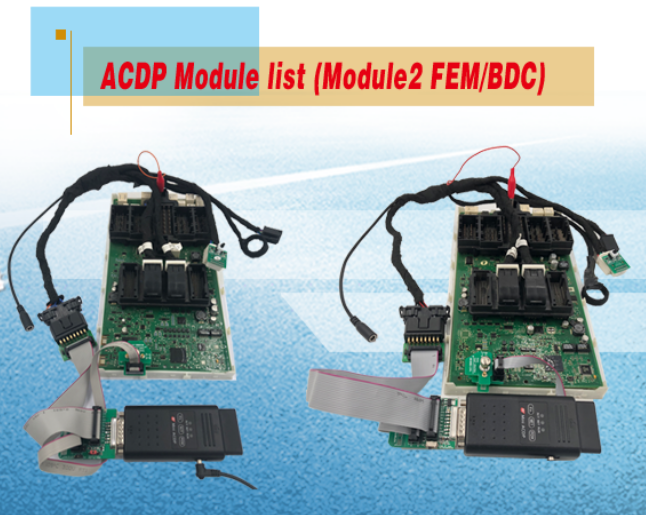

FEM/BDC Module



yanhua mini acdp moldue 2

Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.
ISN Module

Yanhua mini acdp key programmer module 3

Read/write N20/N55/N13 ISN code via OBD.
Read/write MSV80/MSD85 ISN code without opening DME shell.
Read/write other DME ISN code by opening DME shell.
35160 Module

Yanhua mini acdp module 4

Support erase/adjust mileage of 080DOWQ/T,160DOWQ/T EEPROM.

Fujitsu CPU MB91F

Module

Yanhua mini acdp module 5

Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.

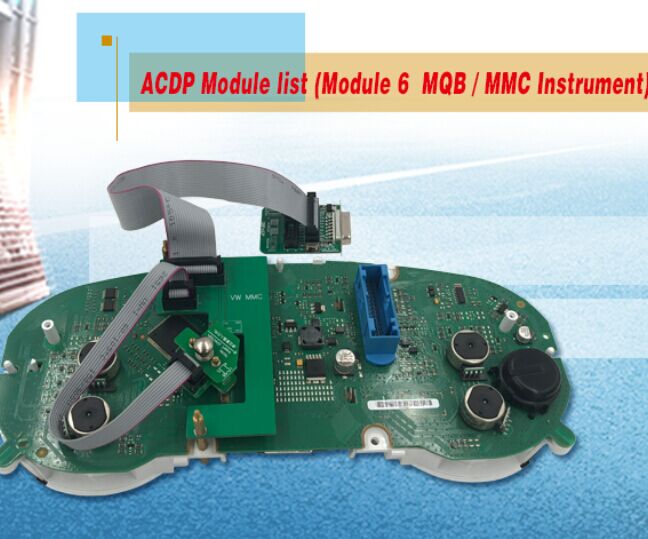

MQB/MMC Instrument

Yanhua mini acdp module 6

Support parts of VDO mileage adjustment of VW MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
Refresh BMW key



Yanhua mini acdp module 7

Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.

FRM module (FRM

Footwell module)

Yanhua mini acdp module 8

Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.

Jaguar/Land Rover

KVM Module

Yanhua mini acdp module 9

Support Adding key and all-key-lost for new Jaguar and land rover after year 2015.
Porsche BCM Module

Yanhua mini acdp module 10

Support Adding key and all-key-lost for Porsche BCM.

Yanhua Mini ACDP Full Adapters:

Adapter Name Image Function
PC  Bluetooth Using the ACDP PC version software.
PAD Officially designated PAD model

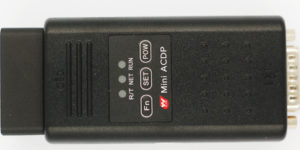

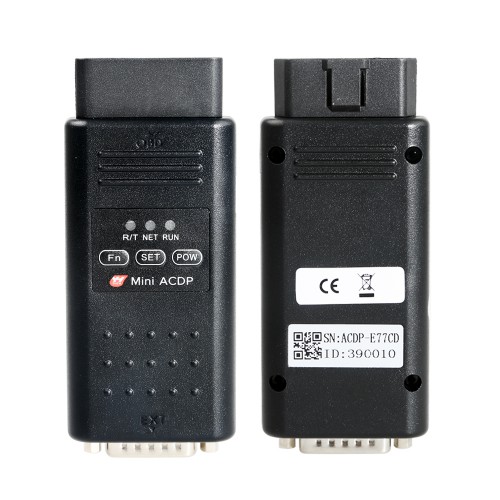

ACDP Programmer
OBP+ICP Adapter Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable.
Puncture Socket(With one more plastic part) Applicable to read and write 24/93/95 and other series 8-pin EEPROM data without removing/soldering.

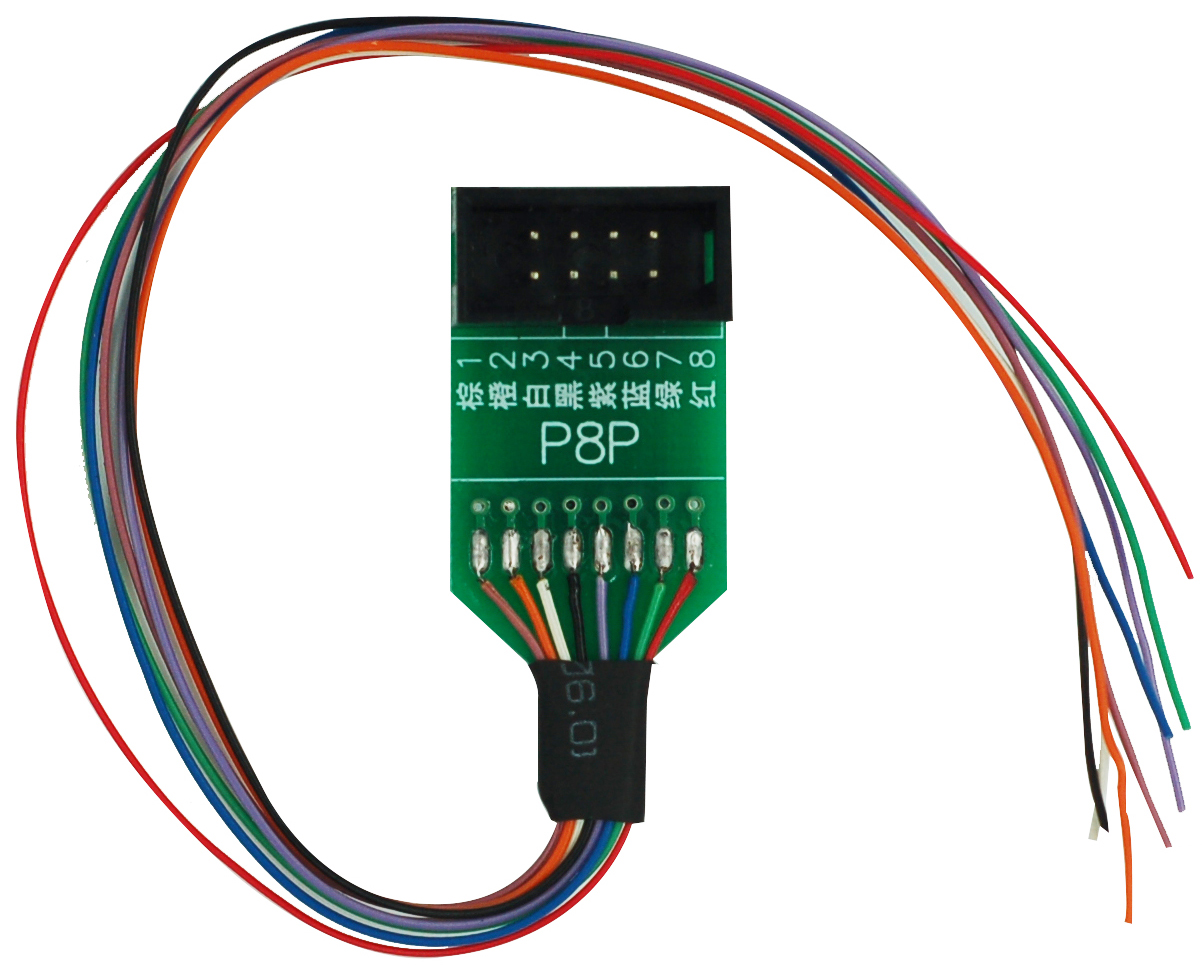

P8P Cable Applicable to read and write 8-pin EEPROM data via cable connecting.

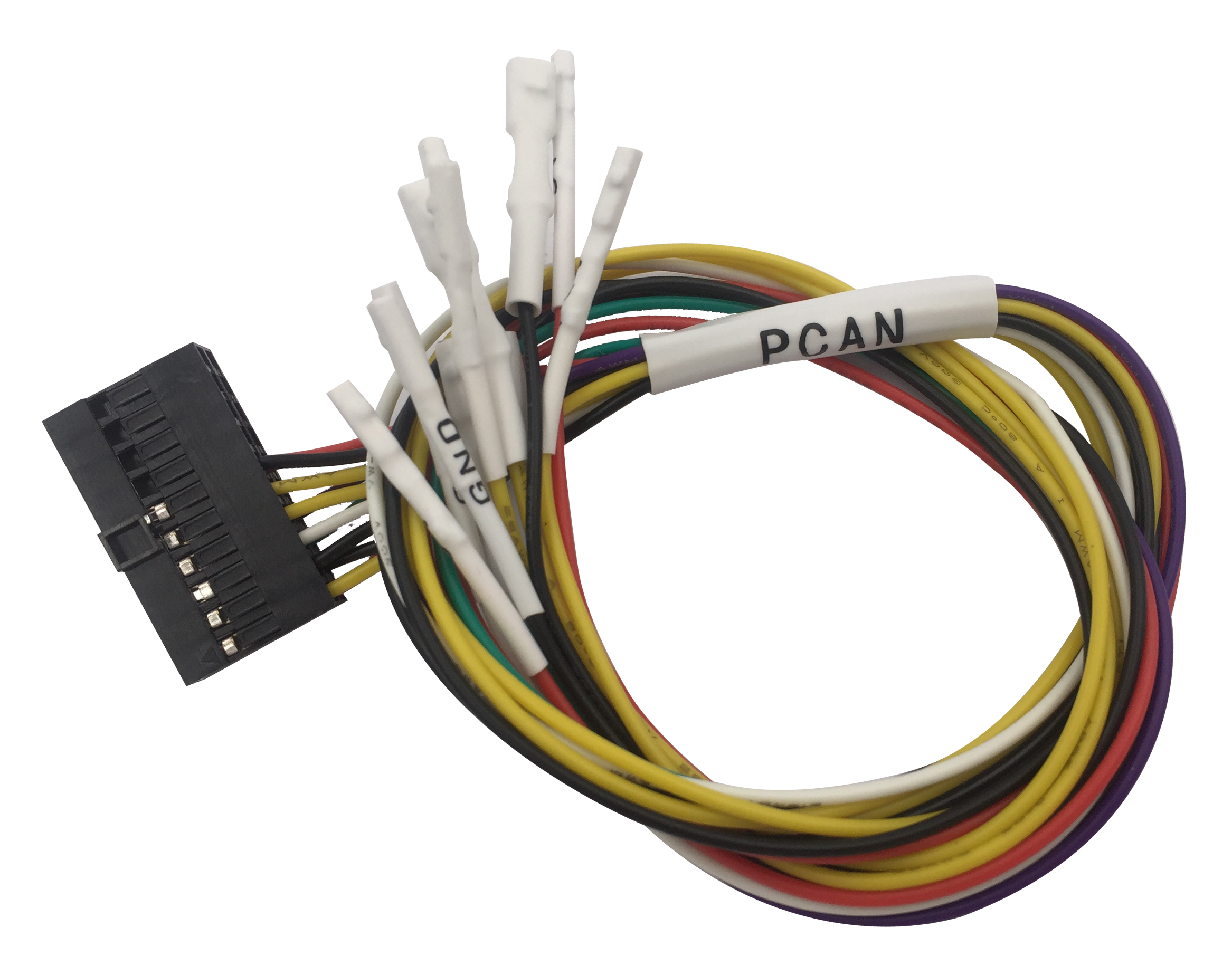

P CAN Cable Applicable to connect BMW DME to read ISN code.

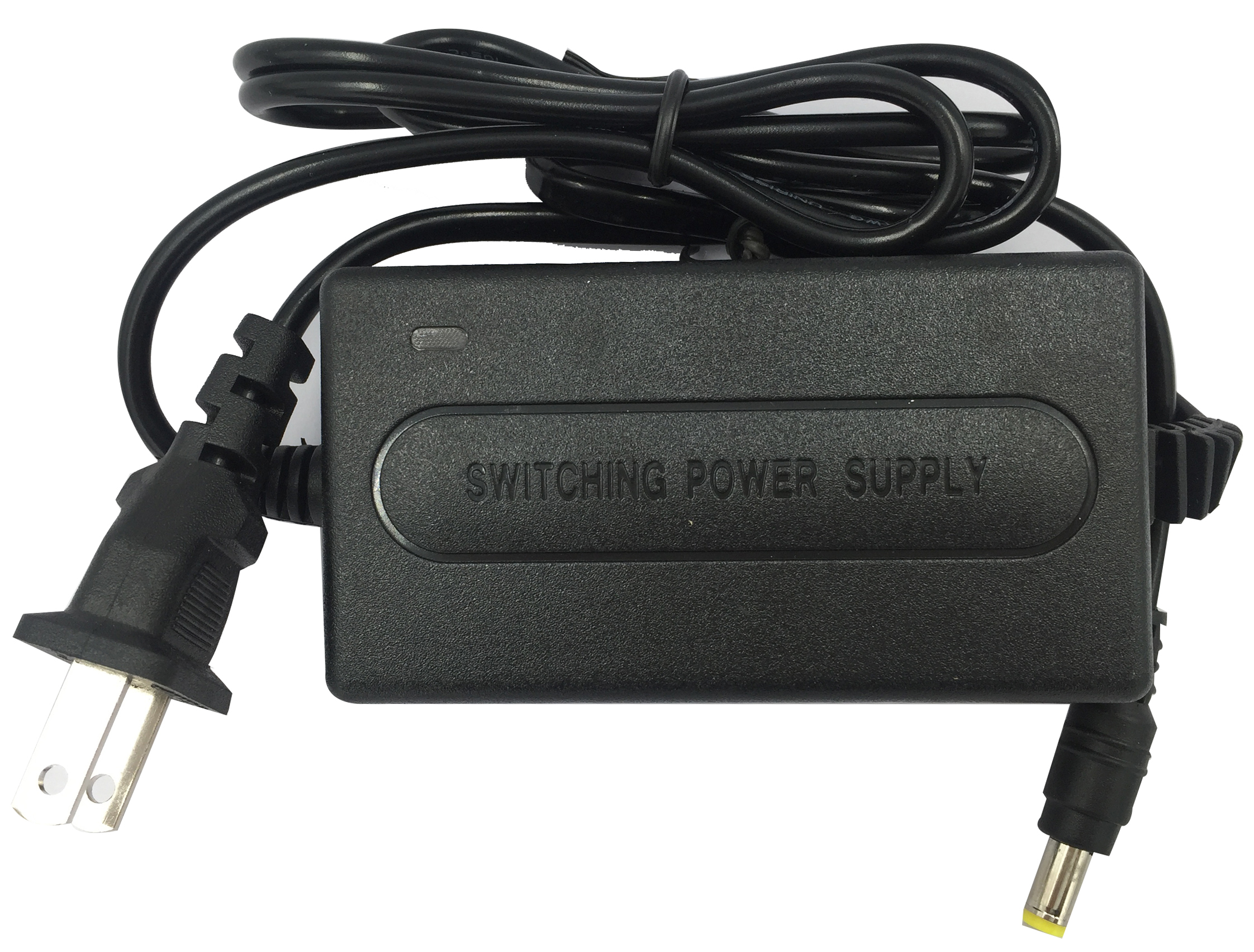

12V Switch Power Supply Supply power to the ACDP Host.

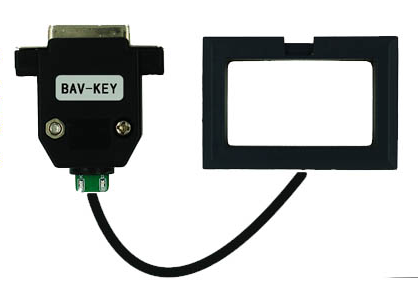

BAV-KEY adapter Applicable to identify BMW keys, data writing and matching.

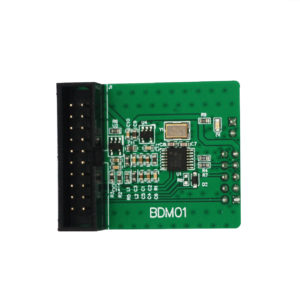

BDM01 adapter Applicable to decrypt BMW CAS EEPROM.

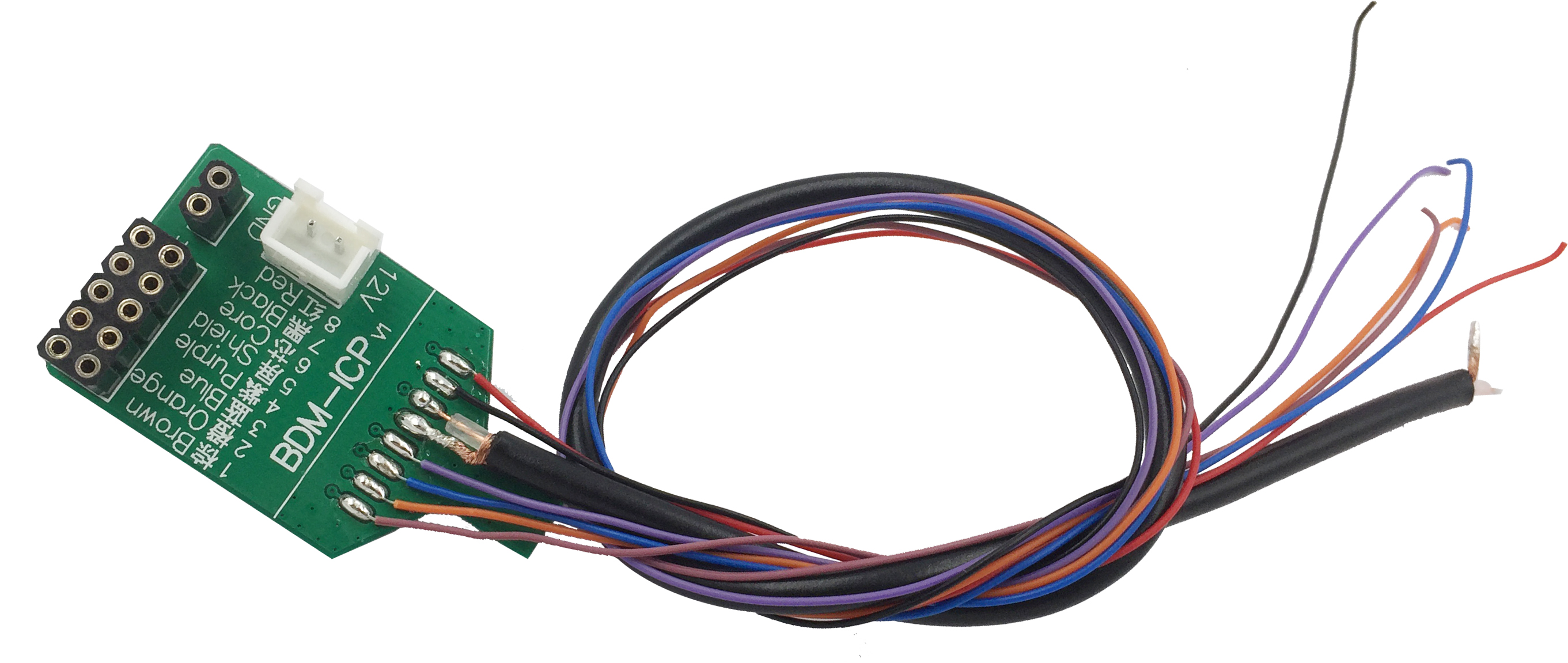

BDM-ICP cable Applicable to read/write data by ICP with BDMO1 adapter.
BMW-CAS3 Interface board Applicable to connectCAS3/CAS3+ test points. Used with BDM01 adapter.
BMW-CAS4 Interface board Applicable to connectCAS4/CAS4+ test points. Used with BDM01 adapter.

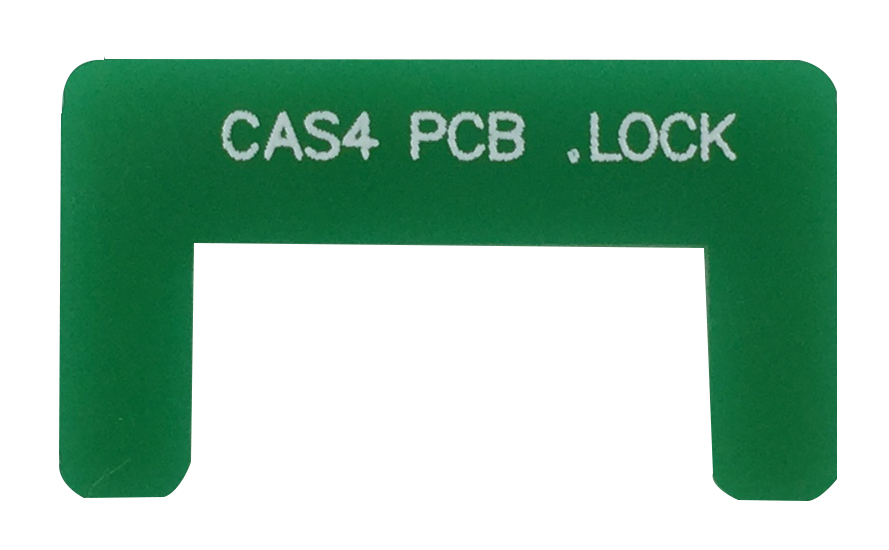

BMW-CAS4 Interface board Buckle Applicable to fix BMW-CAS4 interface board and CAS board.
Desktop OBD transfer board Applicable to connect FEM/BDC and ACDP host.
BMW FEM/BDC Test platform cable Applicable to connect FEM/BDC and ACDP host.

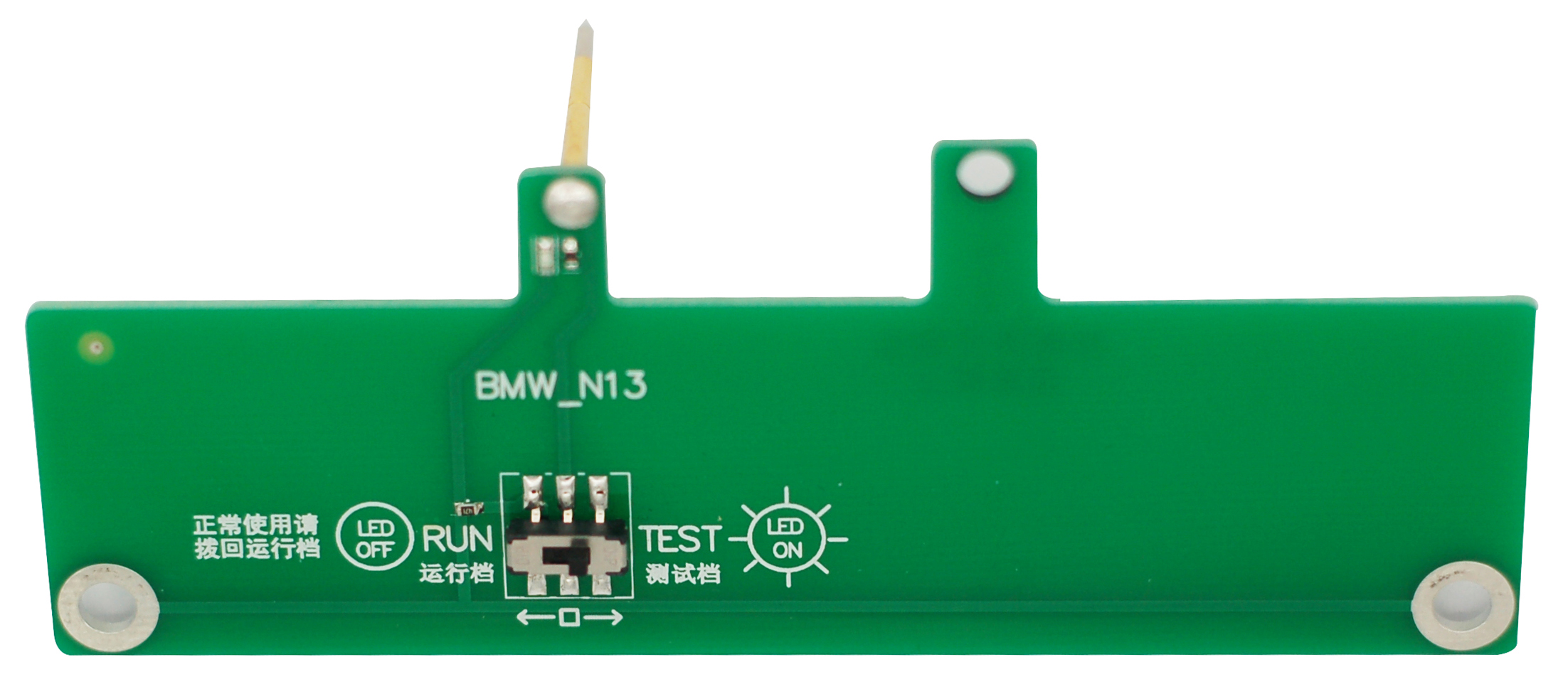

BMW-N13 Interface Board Applicable to connect BOOT point when reading ISN code of N20 DME by drilling hole.
N20 shell drilling hole caliper Applicable to limit the depth of drilling.
M35080/160 adapter Applicable to read and write D080DOWQ/T D160DOWQ/T EEPROM.
HONDA FIT DELUXE Interface board Applicable to connect HONDA FIT DELUXE odometer test point.
HONDA FIT GENERAL Interface board Applicable to connect HONDA FIT GENERAL odometer test point.

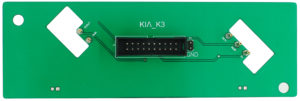

KIA K3 Interface board Applicable to connect KIA K3 odometer test point.

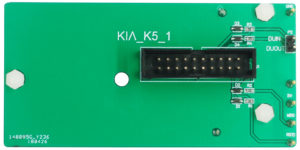

KIA K5 Interface board -1 Applicable to connect KIA K5 odometer test point 1.

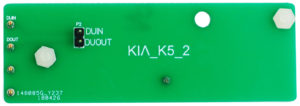

KIA K5 Interface board -2 Applicable to connect KIA K5 odometer test point 2.

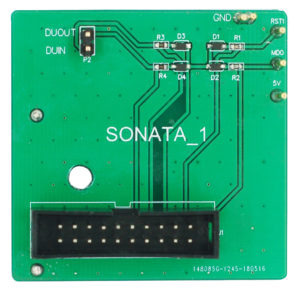

Sonata Interface board -1 Applicable to connect Sonata odometer test point 1.

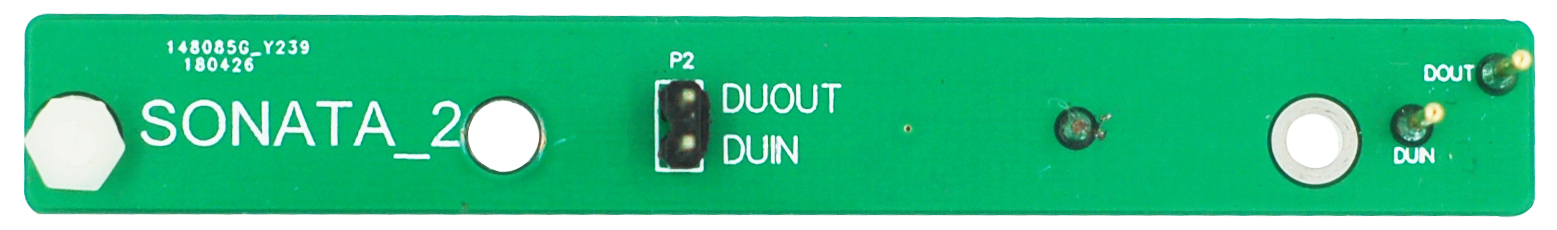

Sonata Interface board -2 Applicable to connect Sonata odometer test point 2.
VW Passat MMC instrument interface board Applicable to connect the VW Passat MMC instrument test point.
BMW F chassis(HUFXXXX)Key interface board Applicable to connect the test point of BMW F chassis(HUFXXXX) Key board.

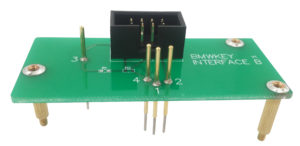

BMW F chassis(5WKXXXX)Key interface board Applicable to connect the test point of BMW F chassis(5WKXXXX) Key board.

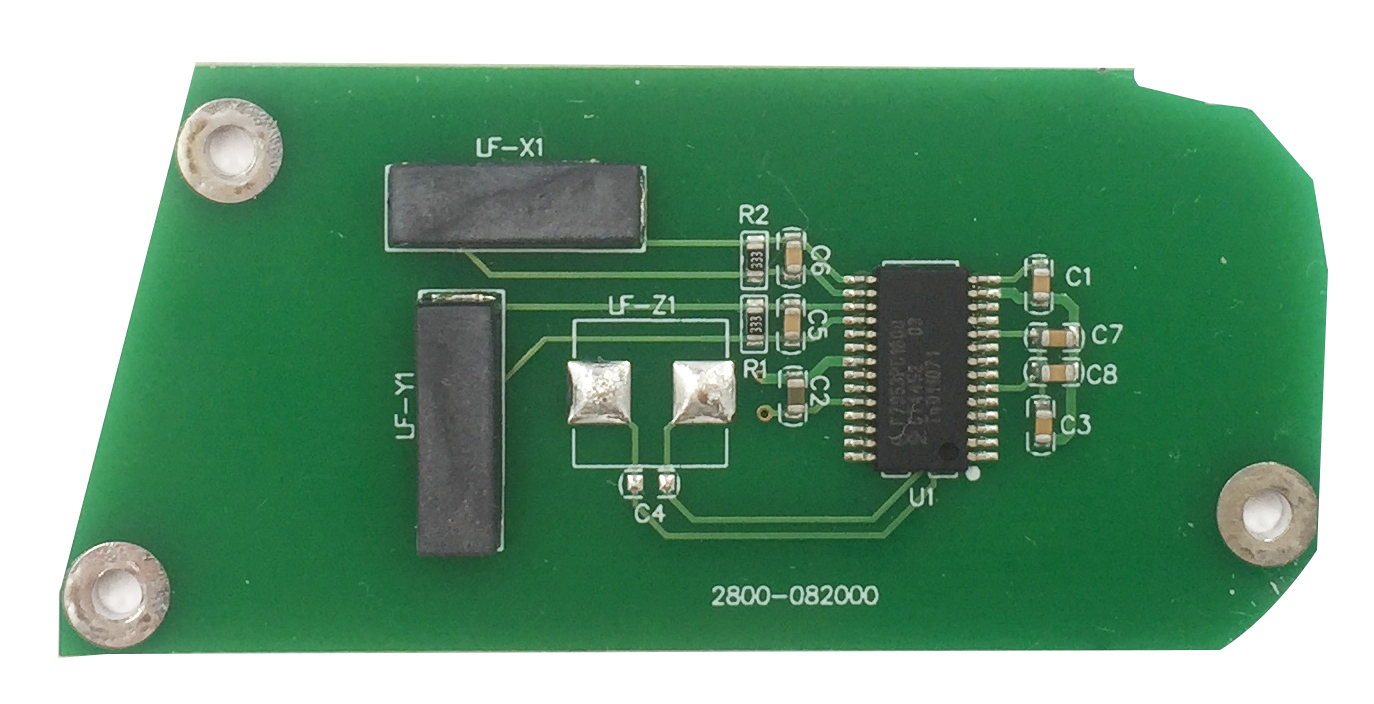

BMW Key simulator Applicable to analog BMW keys for platform testing
0L15Y chip Interface board Applicable to connect BMW FRM module (FRM Footwell module),test point of 0L15Y chip interface board

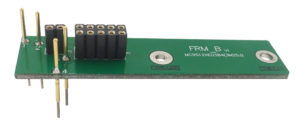

3M25J chip Interface board Applicable to connect BMW FRM module (FRM Footwell module),test point of 3M25J chip interface board.

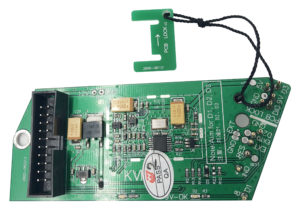

Jaguar/Land Rover KVM Module Interface board Applicable to connect and fix Jaguar/Land Rover KVM Module test point.

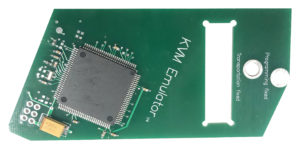

Jaguar/Land Rover KVM Module simulator board Applicable to Jaguar/Land Rover KVM Module. Work with Interface board for practice.
Jaguar/Land Rover Key Refresh Interface board Applicable to connect and fix Jaguar/Land Rover key test point.

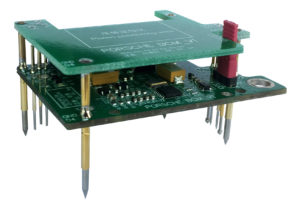

Porsche BCM Module Interface board Applicable to connect and fix Porsche BCM test point.

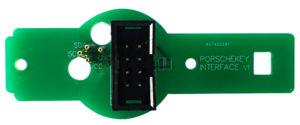

Porsche Key refresh Interface board Applicable to connect and fix Porsche Key test point.
CAS1 Interface board A Applicable to connect CAS1 EEPROM 2K79X,0L01Y test point
CAS1 Interface board B Applicable to connect CAS1 EEPROM 0K50E test point.

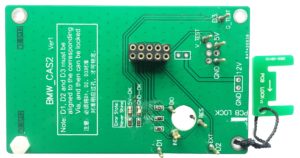

CAS2 Interface board Applicable to connect CAS2 Interface board test point.
The cas3/4 tester adapter host Applicable to connect the cas3/4 module plug
CAS3 Interface board Applicable to connect the cas3 small plug of CAS3 module
CAS4 Interface board Applicable to connect the cas4 small plug of CAS3 module
Rf-test adapter host Applicable to connect the ACDP host or DC 12V plug

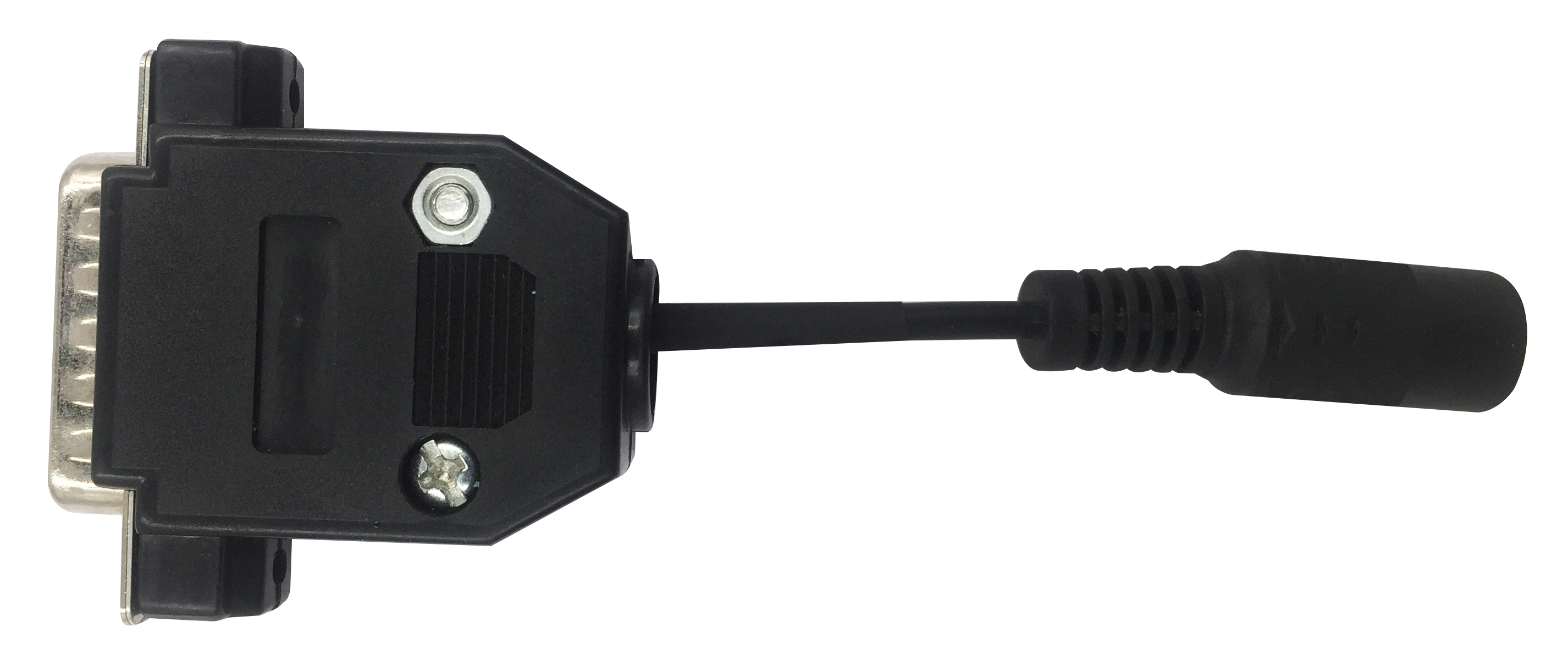

DC 12V plug Applicable to connect the Rf-test adapter host
