How to read Volvo CEM data by Mini ACDP and module 12?

Video:

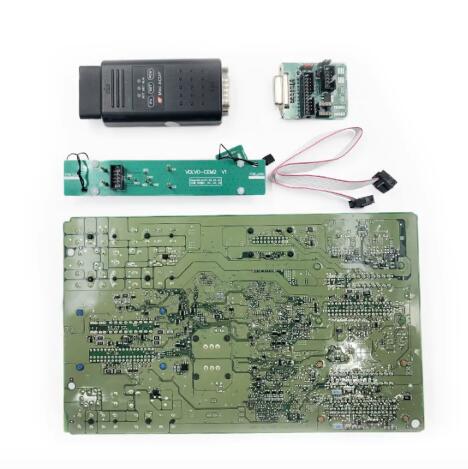

Preparation:

ACDP host

OBP+ICP adapter

8 pin cable

Volvo CEM module (type 1)

yanhua mini acdp volvo module12 kvm cem 16

Volvo CEM module (type 2)

yanhua mini acdp volvo module12 kvm cem 17

Procedure:

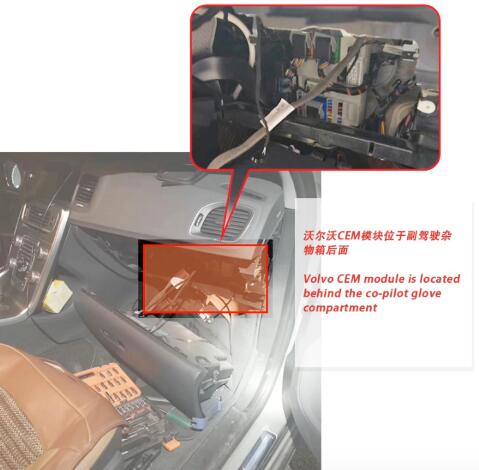

Remove the Volvo CEM module from the car

yanhua mini acdp volvo module12 kvm cem 18

Note: CEM module is located behind the co-pilot glove compartment

There are two CEM types, select the corresponding connection diagram below

Volvo CEM Type 1 Connection Diagram:

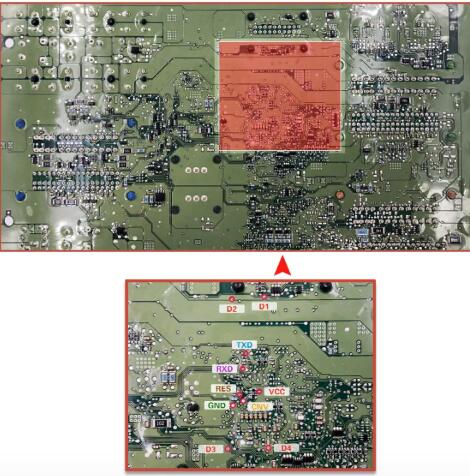

D1-D4 and each test point

yanhua mini acdp volvo module12 kvm cem 19

Install the CEM interface board according to the location point D1-D4

yanhua mini acdp volvo module12 kvm cem 20

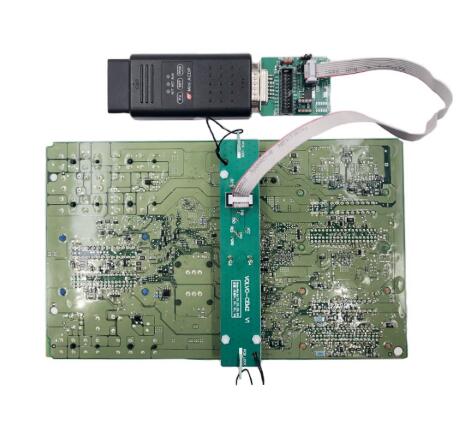

Connect CEM module and ACDP host as below

yanhua mini acdp volvo module12 kvm cem 21



Volvo CEM Type 2 Connection Diagram:

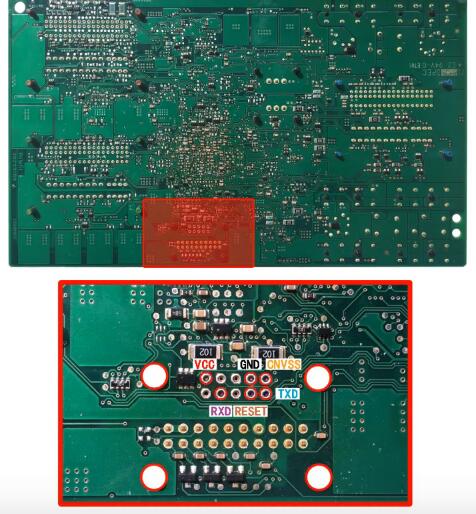

D1-D4 and each test point

yanhua mini acdp volvo module12 kvm cem 22

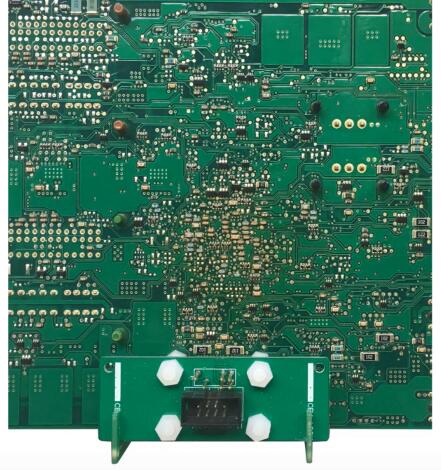

Install the CEM interface board according to the location point D1-D4

yanhua mini acdp volvo module12 kvm cem 23

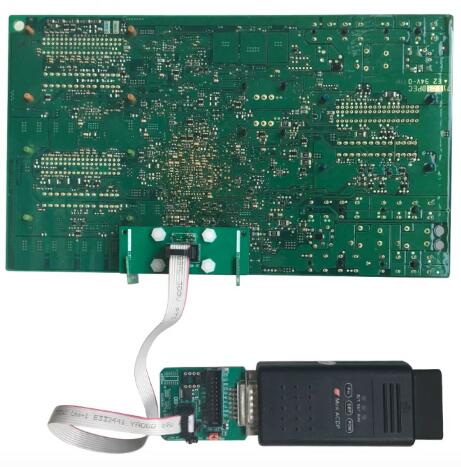

Connect CEM module and ACDP host as below

yanhua mini acdp volvo module12 kvm cem 24

Now follow the same guide as read KVM data to read CEM

Go to Mini ACDP APP

Select the corresponding options according to your need

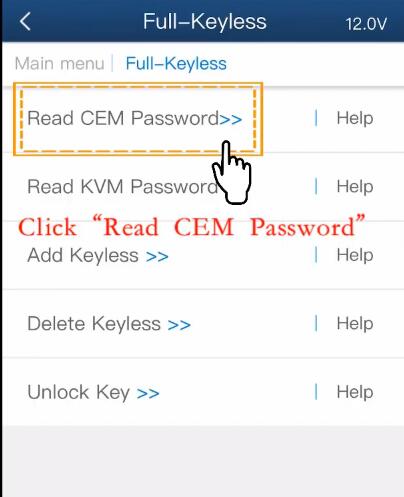

Click on “Volvo”-> “XC60 (2009-2018)”-> “Full-keyless”-> “Read CEM Password”

yanhua mini acdp volvo module12 kvm cem 25

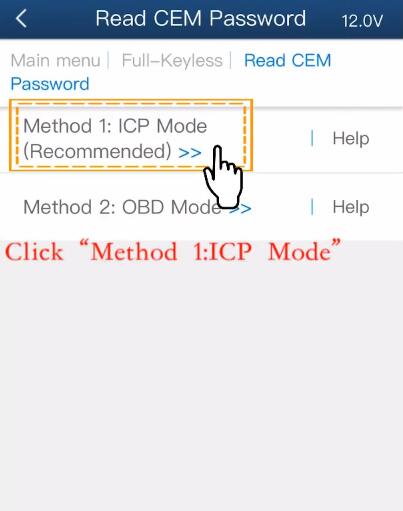

Select “Method 1: ICP Mode (Recommended)”

yanhua mini acdp volvo module12 kvm cem 26

Network testing…

Starting the device…

Follow the prompt to confirm device connection

Detecting pin chip…

Pin detection passed

If not, please clean the corresponding test points

yanhua mini acdp volvo module12 kvm cem 27

Click “OK” to read data

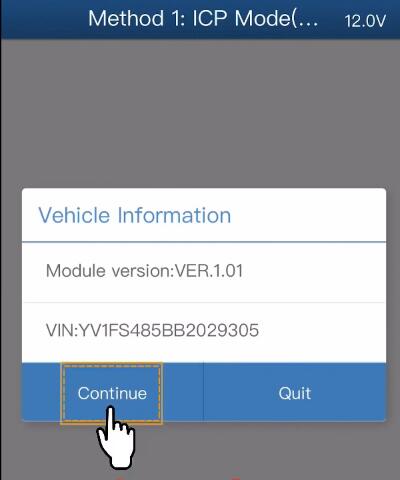

Check the vehicle information read out

Click “Continue”

yanhua mini acdp volvo module12 kvm cem 28

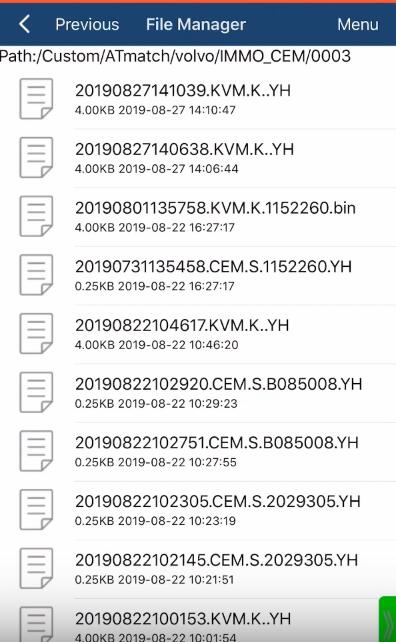

Follow the prompt to save CEM password data

yanhua mini acdp volvo module12 kvm cem 29

Confirm the CEM data storage path

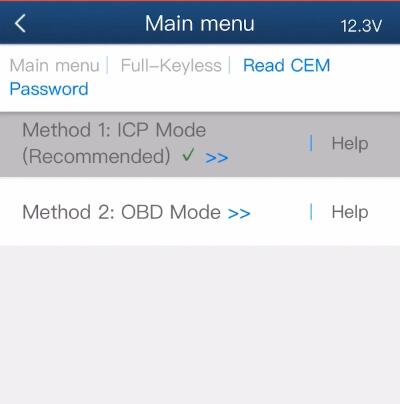

Yanhua Mini ACP read Volvo CEM data success

yanhua mini acdp volvo module12 kvm cem 30
