Yanhua MINI ACDP Gearbox Modules Review

There are 3 Mini ACDP Gearbox modules designed for different car models. What’s the difference between them? How to choose the one you need? Just go ahead to read the post.

Yanhua Mini ACDP Gearbox modules:

BMW Gearbox EGS ISN Module (ACDP Module 11)

VW/Audi Gearbox Clone Module (ACDP Module 13)

Volvo/Landrover/Ford MPS6 Gearbox Clone Module (ACDP module 14)

The similarities:

The special interface board connection method replaces the traditional plugging wire method.

It can prevent plug wire to opposite direction and wrong place.

Advantages:

  • Simple and efficient
  • Plug and play
  • Safe and reliable

The differences:

Mini ACDP modules Module 11 Module 13 Module 14

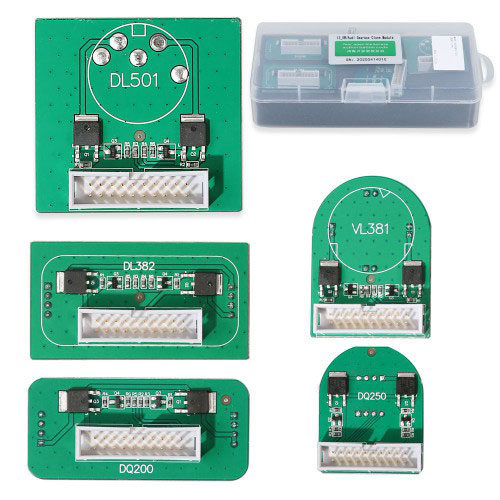

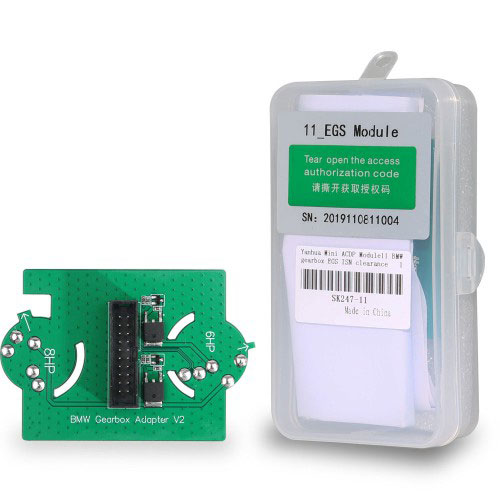

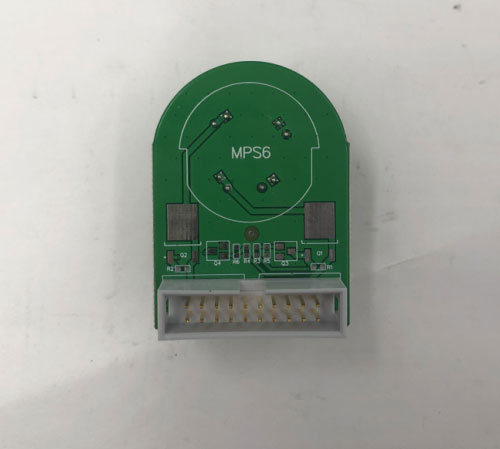

IMG mini acdp gearbox modules 1 mini acdp gearbox modules 2 mini acdp gearbox modules 3
Function EGS State
Clear ISN
Reset Adaptation
Backup Coding
Recover Coding
Clone gearbox Clone MPS6 chip’s gearbox
Vehicle coverage 1.Support BMW 8HP(F/G chassis) gearbox refresh;          2.Support 6HP (F chassis) gearbox refresh and cloning VW, Audi, Seat and Skoda Support VW, Audi DQ200(0AM/0CM), DQ250(02E/0D9), DL382(0CK) ,DL501(0B5) ,VL381(0AW) models and etc. Volvo, Land Rover, Ford, Chrysler, Dodge, etc.

How to use Yanhua Mini ACDP module 11?

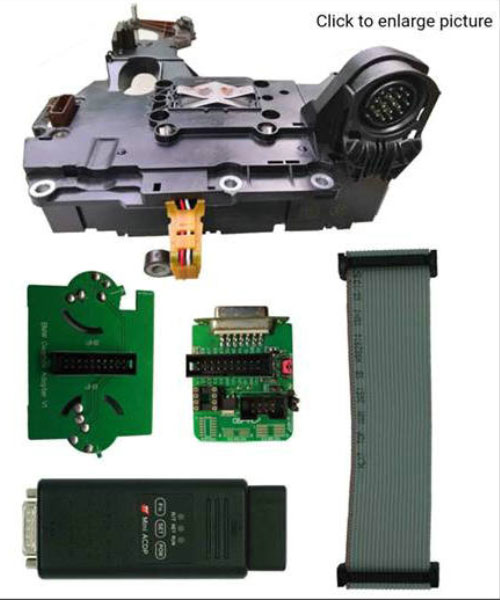

Step 1: Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module

mini acdp gearbox modules 4

Step 2: Connect the 8HP end of the EGS interface board to the EGS module interface

mini acdp gearbox modules 5

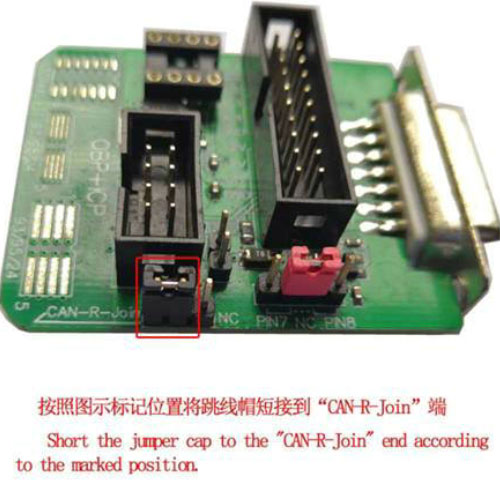

Step 3: Short the CAN termination resistor on the OBP+ICP adapter to the “CAN-R-Join” terminal

mini acdp gearbox modules 6

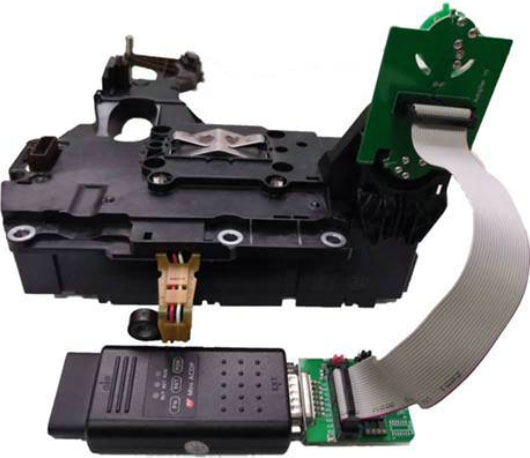

Step 4: Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module

mini acdp gearbox modules 7

8HP ISN Clear (supports F/G Chassis) display:

mini acdp gearbox modules 8

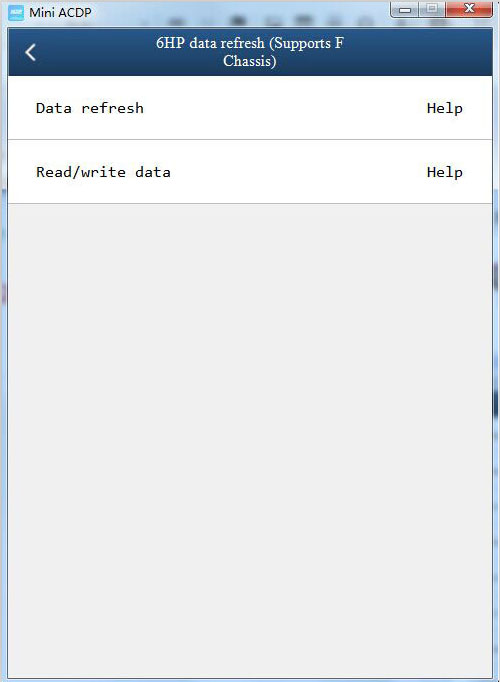

6HP data refresh (supports F Chassis) display:

mini acdp gearbox modules 9

VW/Audi Gearbox Clone Module 13 with Mini ACDP connection:

mini acdp gearbox modules 10

Check more car models connection, please click Yanhua ACDP VW/Audi Gearbox Clone Module 13.

ACDP MPS6 Gearbox Clone Module 14 connection:

mini acdp gearbox modules 11 mini acdp gearbox modules 12
