How to obtain Mini ACDP modules authorization by yourself?

As we know, when you want to use Yanhua Mini ACDP modules, you need to send the related serial number to distributor engineer to activate. But now, Yanhua Tech Company has added a new function in Mini ACDP App, you can obtain the ACDP software licenses by yourself.

Tips and guides to obtain ACDP modules authorization automatically:

1.Only new modules which has a label with authorization code on the module box can be automatically authorized (e.g Porsche BCM module as below)

yanhua mini acdp automatic authorization 1

2.How to activate ACDP mini software license:

After the ACDP bonded, it shows the device does not obtain the authorization of the relevant function, as shown:

yanhua mini acdp automatic authorization 2

Please operate follow the steps below:

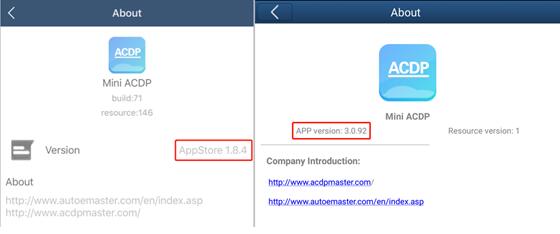

Step 1: Make sure the IOS version is 1.8.4 or above, and the Android version is 3.0.92 or above

yanhua mini acdp automatic authorization 3

Step 2: Take off the green security seal on the module box, and clean up the QR code

yanhua mini acdp automatic authorization 4

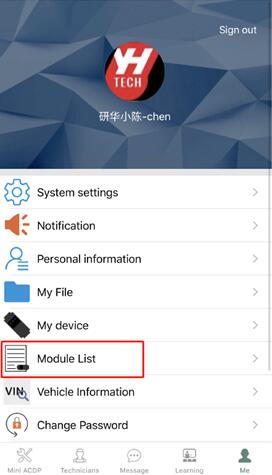

Step 3: Make sure the ACDP has bounded successfully,and press “me” in the Mini ACDP APP

yanhua mini acdp automatic authorization 5

Step 5: Select “module list”

yanhua mini acdp automatic authorization 6

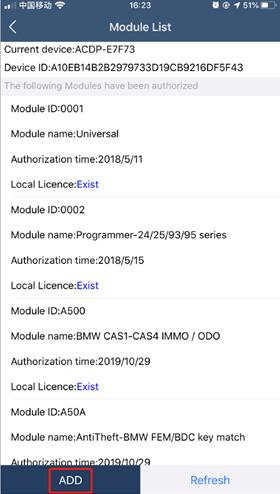

Step 6: Press “ADD”

yanhua mini acdp automatic authorization 7

Step 7: Click “Scan QR Code” to start scanning the QR code on the paster or type the authorization card (Capital letters only)

yanhua mini acdp automatic authorization 8

Step 8: Check the authorization card number and press “Submit” after confirmed

yanhua mini acdp automatic authorization 9

Step 9: When the prompt comes with authorization success, press “OK”

yanhua mini acdp automatic authorization 10

Step 10: When the prompt comes with refreshing authorization info success, press “OK”

yanhua mini acdp automatic authorization 11

Step 11: If you want more module authorization info,please press “ADD” for more

yanhua mini acdp automatic authorization 12

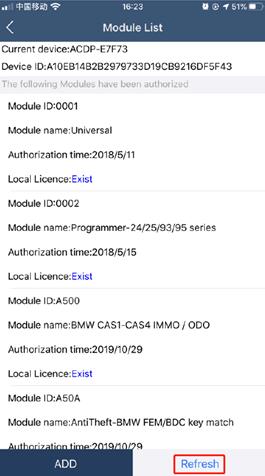

Step 12: If you change another phone or PC,after the ACDP bounded, please press “Refresh” to download your authorization info

yanhua mini acdp automatic authorization 13

Yanhua Mini ACDP full modules link: http://www.yanhuaacdp.com/info/module/

That’s all!

Author: Yanhua MiniACDP
