Yanhua Mini ACDP CAS1 – CAS4 data renew update

Yanhua Mini ACDP CAS1 – CAS4 data renew update on March 7,2019

CAS1 (0K50E) renew

CAS2 (2k79x) renew

CAS3  (0L01Y/0L15Y/0M23S) renew

CAS4 (1L15Y / 5M48H /1N35H) ICP renew.

Attach several images for the update:

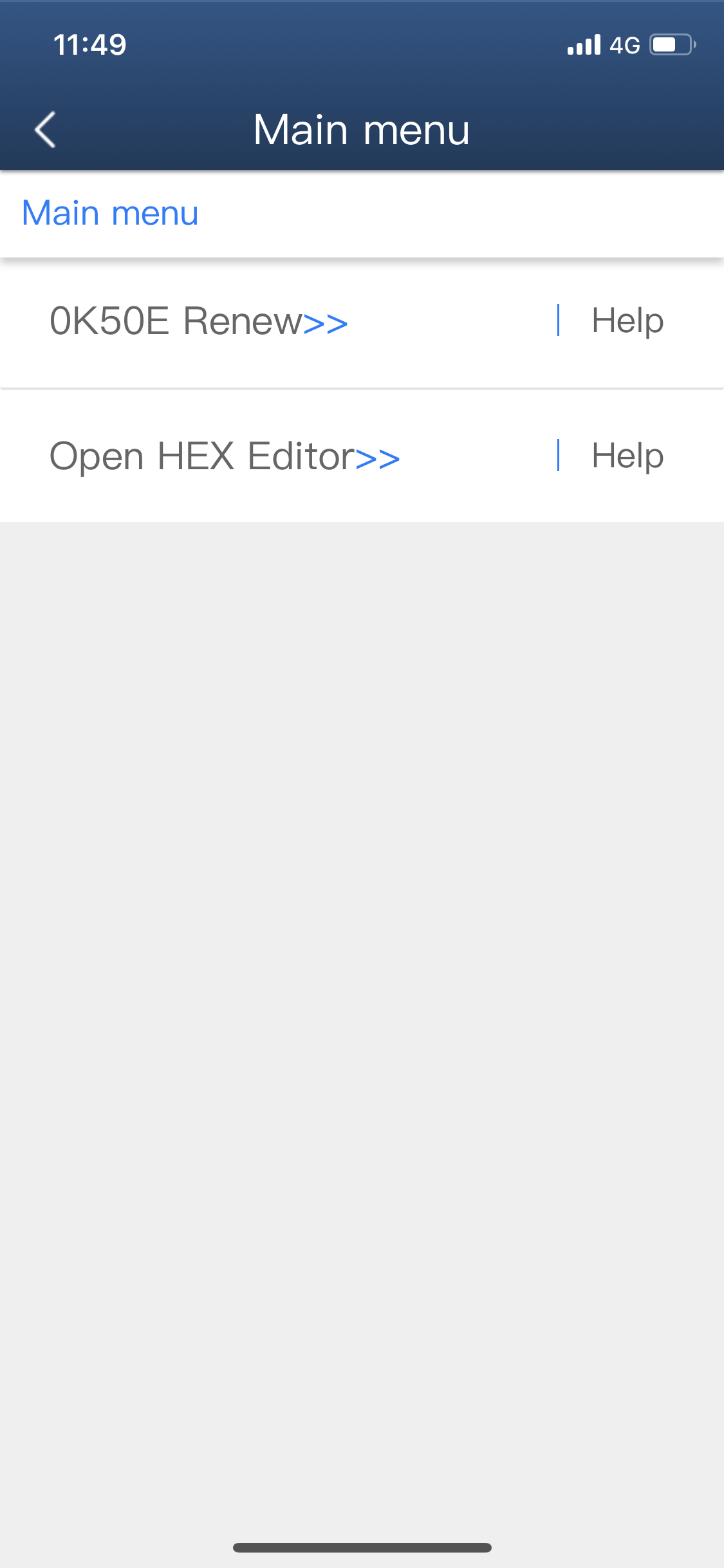

  1. CAS1 (0K50E) renew

acdp cas1 renew 01

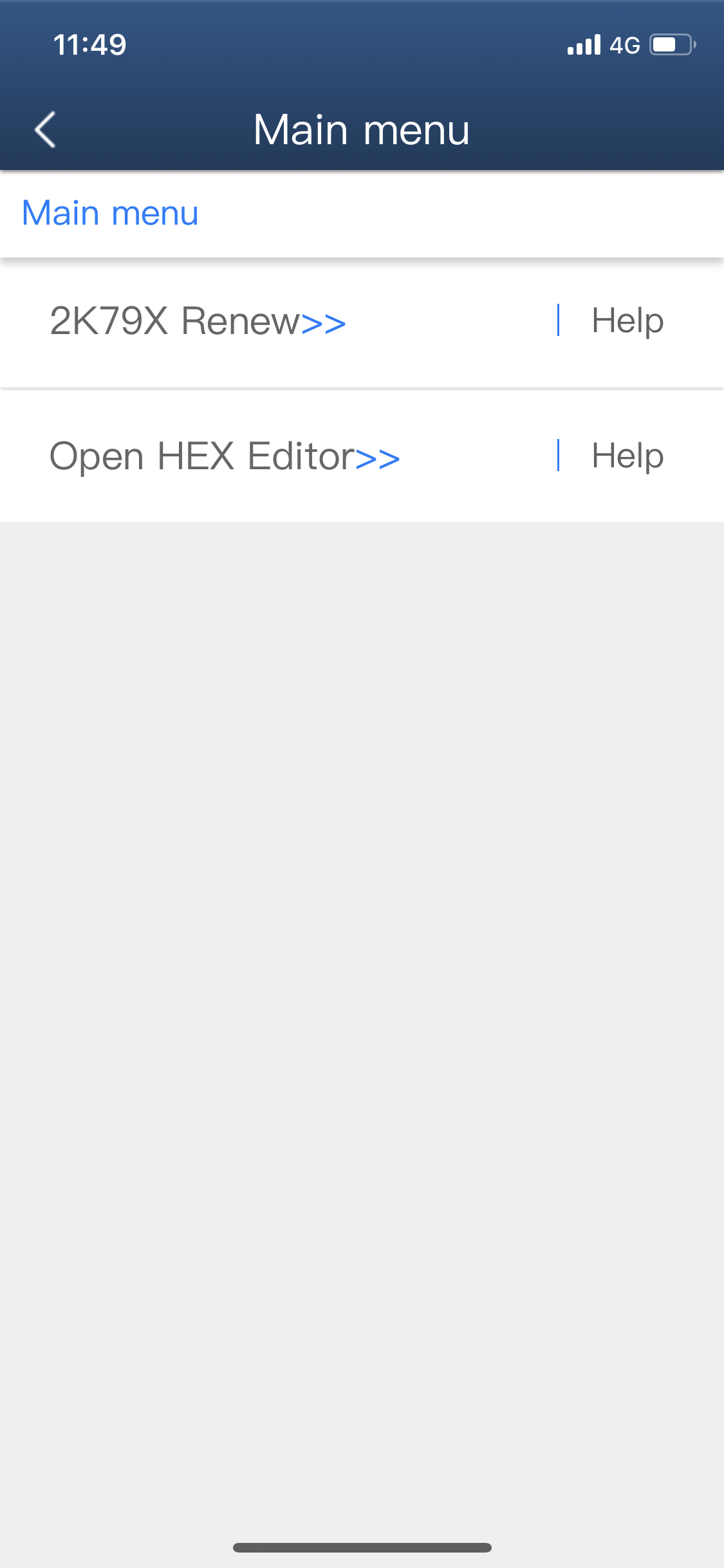

  1. CAS2 (2k79x) renew

acdp cas2 renew 02

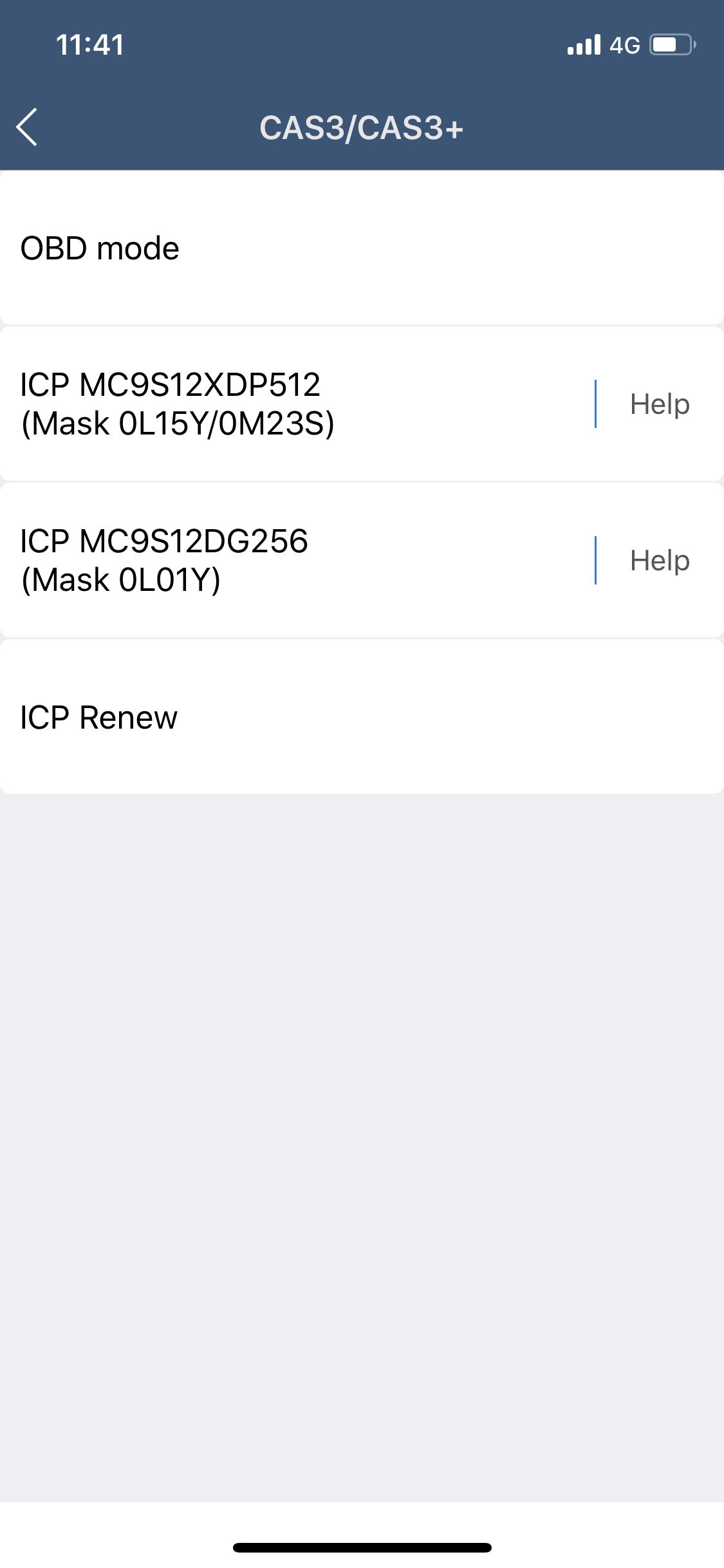

  1. CAS3  (0L01Y/0L15Y/0M23S) renew

acdp cas3 renew 03 acdp cas3 renew 04

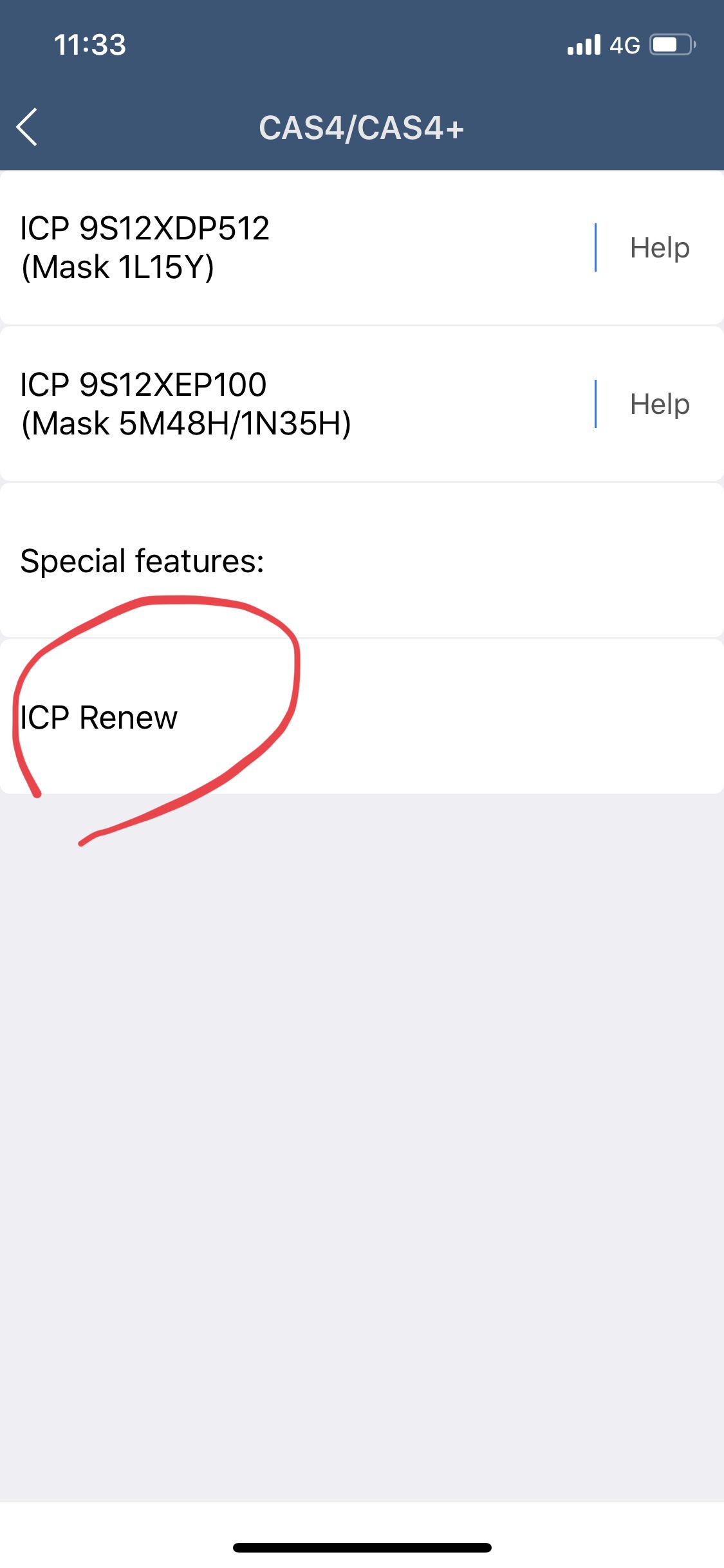

  1. CAS4 (1L15Y / 5M48H /1N35H) ICP renew.

acdp cas4 renew 05 acdp cas4 renew 06


The EEPROM data of CAS1 – CAS4 can be renew. First load the EEPROM data from the other car, then modify the car frequency, VIN, ISN code and other information to generate new EEPROM data. So that it can solve the problem that the CAS EEPROM data lost or the CAS module damage and the EEPROM data can’t be read out and the CAS module needs to be changed.

Step 1:
Prepare the EEPRON data for the corresponding chip model and copy the data to the APP path: “:/ Atmatch/bmw/CAS4/CAS_Renew’, then select the corresponding EEPROM file for parameter calculation.

mini acdp cas1 cas4 data renew 07 mini acdp cas1 cas4 data renew 08

Step 2
Enter the VIN number, vehicle frequency, ISN code, etc that need to be modified, modify the loaded data and save it, the device will automatically clear the CAS mileage.

mini acdp cas1 cas4 data renew 09

Step 3
Write the saved new EEPROM data to the CAS module, then load the CAS module

Step 4
After the module is loaded, if the vehicle cannot be started, or the “Direction lock” is displayed on the meter, please synchronize the ELV or DME according to the situation.

Step 5:
Use professional equipment to clear the trouble codes of the vehicle.

The original car key is invalid and you need to relearn the new key to start the car.
