Yanhua ACDP Mercedes Benz DME Clone Module 15 Review

It’s difficult to use the traditional plugging method to clone Mercedes-Benz DME by Mini ACDP, it may plug the wire to the opposite direction and wrong place. Yanhuaacdp.com newly releases ACDP module 15 to solve the problem.

mini acdp clone benz dme without soldering 1

Yanhua ACDP Mercedes Benz DME Clone Module 15 Function:

The main function of Yanhua ACDP Module 15 is to work with Mini ACDP to clone Mercedes-Benz DME via Bench mode, no need to open the DME shell, drill hole on DME and plug wire.

There are 8 kinds of MB-DME-adapters in Yanhua Mini ACDP module 15. The specified adapter only can be used for the corresponding Benz DME models.

X1: MB-DME-Adapter X1 supports DME clone of Mercedes-Benz

152/157/274/276/278(MED17.7.3), 272/276 (MED17.7.3.1), 276/278 (MED17.7.1), etc

X2: MB-DME-Adapter X2 supports DME clone of Mercedes-Benz 133/270/274 (MED17.7.2), etc

X3: MB-DME-Adapter X3 supports DME clone of Mercedes-Benz 260/264 (MED17.7.7), etc

X4: MB-DME-Adapter X4 supports DME clone of Mercedes-Benz diesel vehicle 642 (EDC17CP01), 642/651 (EDC17CP46), 626/622/651 (EDC17C66), 651/642 (EDC17CP57), 651/642 (EDC17CP10), etc

X5: MB-DME-Adapter X5 supports DME clone of Mercedes-Benz 272/279 (ME17.7), etc
-X6: MB-DME-Adapter X6 supports DME clone of Mercedes-Benz diesel vehicle 642/654 (MD1CP001), etc

X7: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz 177/178 (MED17.7.5), etc

X8: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz GLS/GT (MG1CP002), etc

How to clone Benz DME by Mini ACDP with module 15?

Connect the corresponding MB-DME-Adapter interface board correctly to the DME

mini acdp clone benz dme without soldering 2

Connect ACDP, OBP+ICP adapter, interface board and DME

mini acdp clone benz dme without soldering 3

Run Mini ACDP APP

Select [Benz]-> [DME Clone]

mini acdp clone benz dme without soldering 4mini acdp clone benz dme without soldering 5

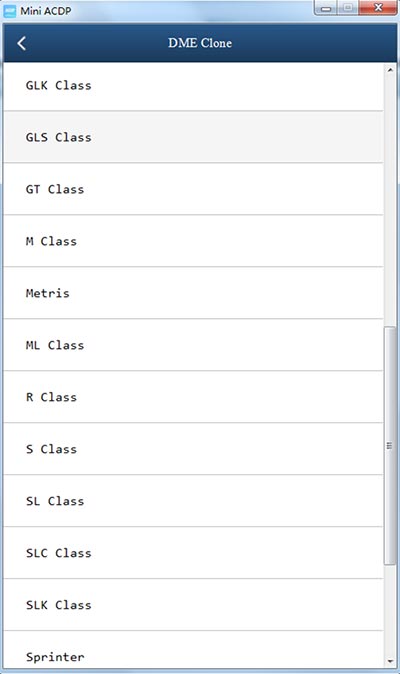

Select the corresponding Benz DME modules

mini acdp clone benz dme without soldering 6mini acdp clone benz dme without soldering 7mini acdp clone benz dme without soldering 8mini acdp clone benz dme without soldering 9

Full backup data firstly, then full write data

mini acdp clone benz dme without soldering 10

Yanhua Mini ACDP Programming Master Basic Version with License A801 NO Need Soldering (UK/US Ship No Tax):

https://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-basic-moduel.html

Yanhua ACDP Mercedes Benz DME Clone Module 15:

https://www.yanhuaacdp.com/wholesale/mercedes-benz-dme-clone-module-15.html

Author: Yanhua MiniACDP
