How to recognize type of smart keys during refresh work by mini acdp

Question: How can i recognize type of smart keys during refresh work using mini acdp with module 9?

4E0U40247 433 MHZ

5E0U40247 433 MHZ

YWX000061 433 MHZ

Do you have a scheme by color to sold wire (P8P) on KVM board, please?

Yanhuaacdp.com engineer replied:

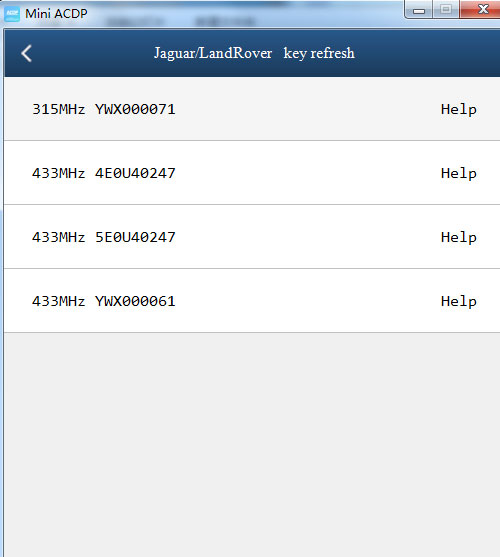

There are four key code can be supported by YANHUA MINI ACDP is shown as the following picture.

mini acdp recognize landrover jaguar key type 1

Please check whether the key code on your key is same as the menu.

  1. Push the metal shell of your key to the right
  2. Confirm the key code

mini acdp recognize landrover jaguar key type 2

If the key code is same, then you can select the corresponding option to refresh your key.

Step 1: Prepare ACDP, OBP+ ICP adapter, 8 PIN cable, Mini ACDP Module9 interface board and key

mini acdp recognize landrover jaguar key type 3

Step 2: Take out the key circuit board to confirm the location of the test point

mini acdp recognize landrover jaguar key type 4

Step 3: Place the key on the interface board and tighten the studs

mini acdp recognize landrover jaguar key type 5

Step 4: Use an 8PIN cable to connect the interface board to the OBP+ ICP adapter and connect the adapter to ACDP.

mini acdp recognize landrover jaguar key type 6

Step 5: Select Jaguar/LandRover-> Jaguar/LandRover key refresh-> corresponding key code

mini acdp recognize landrover jaguar key type 7

Then follow the instruction to operate.
