Yanhua ACDP Do BMW 6HP EGS Refresh clone

Yanhua ACDP module 11 is confirmed working for BMW 6HP EGS refresh and clone(Support F chassis) without removing and welding.

BMW 6HP EGS data refresh function: needs programming and coding before assembling the module back to the car after refreshing; BMW 6HP read/write data function: writing the data to the new module which read from the old one, which known as clone so that assemble back to car directly.

Seeing is believing:

bmw 6hp data refresh via yanhua acdp 01

Image 1: 8HP ISN clear (Support F /G chassis) and 6HP data refresh (Support F chassis)

bmw 6hp data refresh via yanhua acdp 02

Image 2:  6HP data refresh (Support F chassis)

Data refresh and Read/write data.

bmw 6hp data refresh via yanhua acdp 03

Image 3: 8HP ISN clear (Support F /G chassis)

EGS state

Clear ISN

Reset adaption

Backup coding

Recover coding

Guide on Yanhua ACDP + module11 refresh 6HP data (Support F chassis)

Part 1: wiring

Step 1. Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module.

bmw 6hp data refresh via yanhua acdp 04

Step 2. Connect the 6HP end of the EGS interface board to the EGS module interface.

bmw 6hp data refresh via yanhua acdp 05

Step 3. Short the CAN termination resistor on the OBP+ICP adapter to the “CAN-R-Join” terminal.

bmw 6hp data refresh via yanhua acdp 06

Step 4. Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.

bmw 6hp data refresh via yanhua acdp 07

Part 2: download Mini ACDP software

Step 1. Visit Yanhua ACDP official site http://www.acdpmaster.com/

Download pc software or Android / IOS APP.

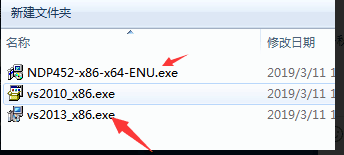

Here take PC software for example, please download the two parts with red arrow.

bmw 6hp data refresh via yanhua acdp 08 bmw 6hp data refresh via yanhua acdp 09

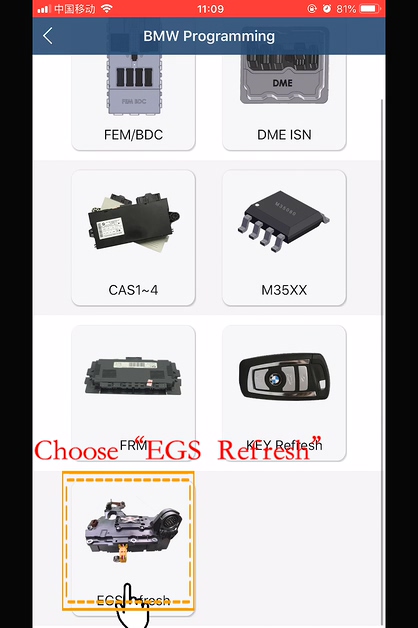

Step 2. Click on “Mini ACDP”, Select “BMW“, then “EGS Refresh” , then 6HP data refresh (Support F chassis)“.

bmw 6hp data refresh via yanhua acdp 12 bmw 6hp data refresh via yanhua acdp 10 bmw 6hp data refresh via yanhua acdp 11

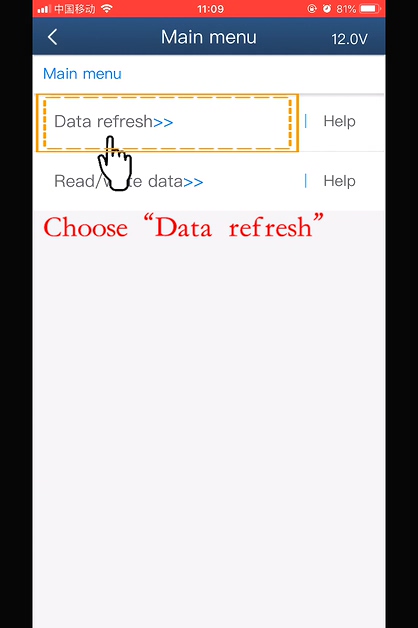

Step 3. Yanhua Mini ACDP Loading source and quick to main menu, choose “Data refresh”.

bmw 6hp data refresh via yanhua acdp 13

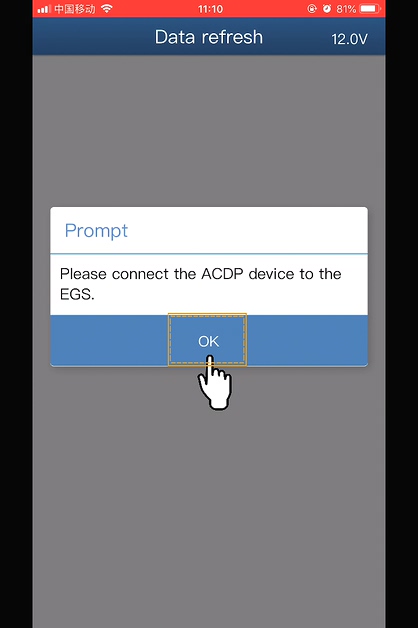

Data refresh.

bmw 6hp data refresh via yanhua acdp 14 bmw 6hp data refresh via yanhua acdp 15

Check VIN and other information.

bmw 6hp data refresh via yanhua acdp 16

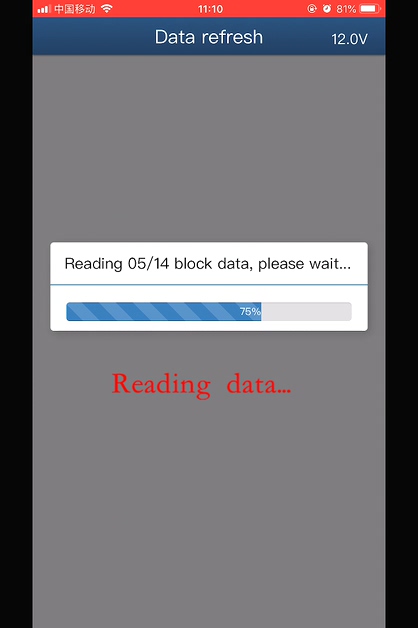

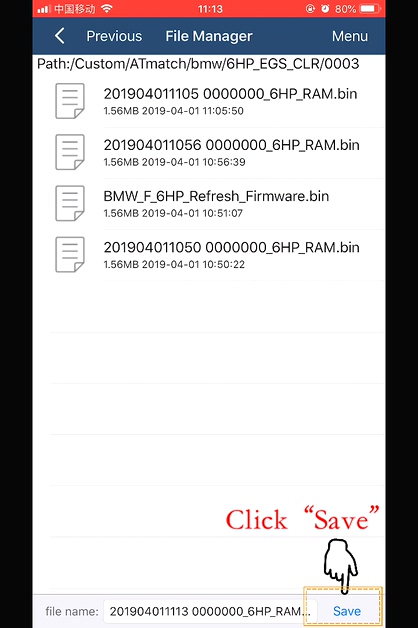

Reading data and save the data file.

bmw 6hp data refresh via yanhua acdp 17 bmw 6hp data refresh via yanhua acdp 18 bmw 6hp data refresh via yanhua acdp 19 bmw 6hp data refresh via yanhua acdp 20

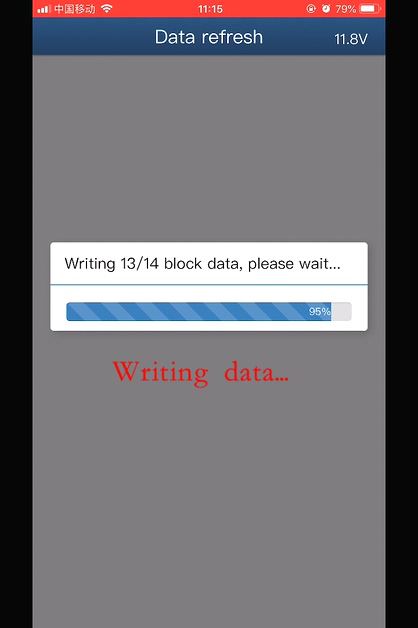

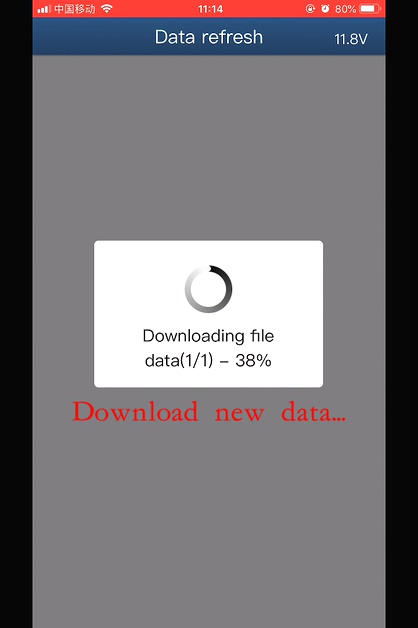

Write data.

bmw 6hp data refresh via yanhua acdp 21 bmw 6hp data refresh via yanhua acdp 22 bmw 6hp data refresh via yanhua acdp 23 bmw 6hp data refresh via yanhua acdp 24 bmw 6hp data refresh via yanhua acdp 25

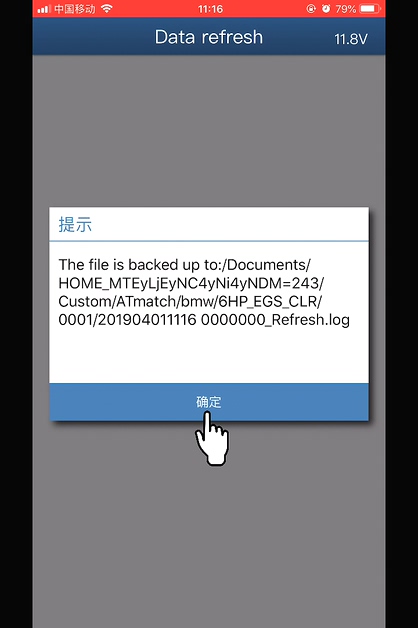

Data refresh is completed.

bmw 6hp data refresh via yanhua acdp 26 bmw 6hp data refresh via yanhua acdp 27 bmw 6hp data refresh via yanhua acdp 28 bmw 6hp data refresh via yanhua acdp 29

Done.

Thumb up to Yanhua ACDP.

Please remember the second paragraph tips.

Author: Yanhua MiniACDP
