Yanhua Mini ACDP Clone BMW ECU MG1 MD1

Q: Can I use mini acdp to clone Bmw ecu mg1 and md1? If can, how to do?

A: Yes.

Here is the related ACDP BMW ECU MG1 and MD1 type list.

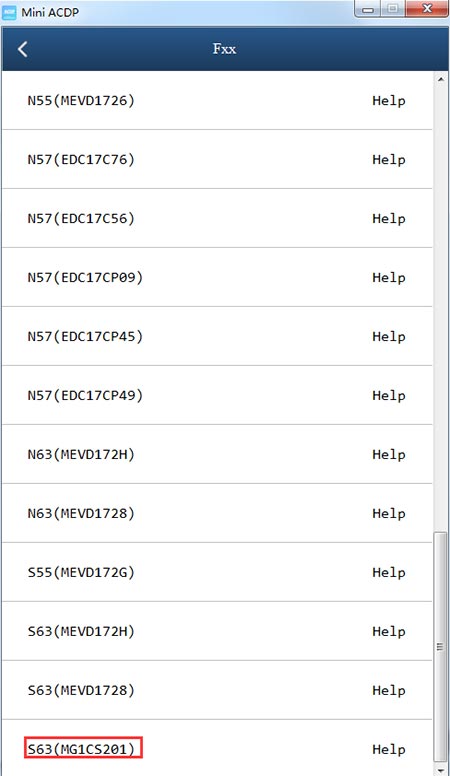

F chassis:

B37 (MD1CS001)

B38 (MD1CS001)

B48 (MG1CS003)

B48 (MG1CS201)

B58 (MG1CS003)

S63 (MG1CS201)

acdp clone bmw ecu mg1 md1 1 acdp clone bmw ecu mg1 md1 2

G chassis:

B46 (MG1CS201)

B47 (MD1CP002)

B47 (MD1CS001)

B48 (MG1CS003)

B48 (MG1CS201)

B57 (MD1CP002)

B58 (MG1CS003)

B58 (MG1CS201)

N63 (MG1CS201)

N74 (MG1CS003)

N74 (MG1CS201)

acdp clone bmw ecu mg1 md1 3

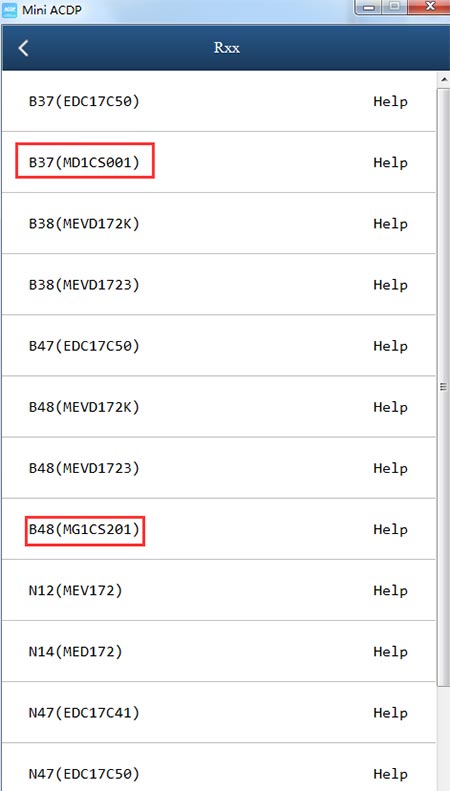

R chassis:

B37 (MD1CS001)

B48 (MG1CS201)

acdp clone bmw ecu mg1 md1 4

Guide to clone BMW ECU MG1 MD1 by Yanhua Mini ACDP:

You should use Mini ACDP programmer+ ACDP ECU clone software + the corresponding Integrated Interface Board.

For BMW B37/B47/N47/N57 Diesel Engine Computer ISN Read/Write and Clone, you can buy ACDP BMW X1/X2/X3 Bench Interface Board.
For B48/B58 ISN Reading and Clone via Bench Mode, you can buy Yanhua ACDP BMW B48/B58 Benzh Interface Board.
For N13/N20/N63/S63/N55/B38 DME ISN read and write, you can buy N13/N20/N63/S63/N55/B38 DME Interface Board.

Operation:
Step 1: Prepare ACDP, OBP+ ICP adapter, interface board and DME

Step 2: Connect the interface board correctly to the DME interface

Step 3: Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”

Step 4: Connect ACDP, OBP+ ICP adapter, interface board and DME

acdp clone bmw ecu mg1 md1 5

Step 5: Enter Mini ACDP APP
Select BMW-> ECU Clone-> Select the corresponding ECU module

acdp clone bmw ecu mg1 md1 6

Step 6: Read /write EEPROM
Step 7: Read/Write PFLASH

acdp clone bmw ecu mg1 md1 7
