How to Clone BMW X5 DME by Yanhua ACDP

Case: Use Mini ACDP BMW to clone 2012 BMW X5 DME by transferring the whole file to another DME

Car: 2012 BMW X5

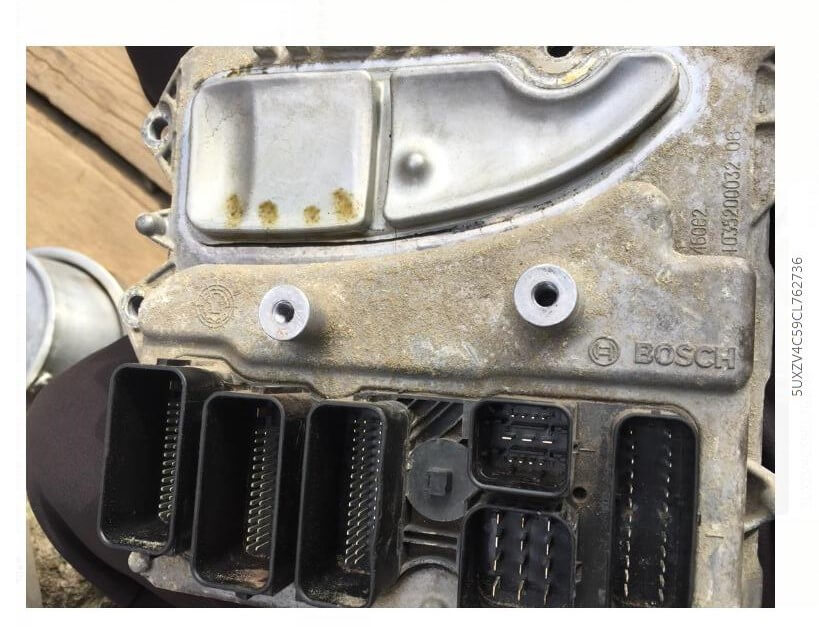

DME model: BOSCH 7 629 130 01

Device:

Yanhua Mini ACDP BMW full package

Yanhua N55 Bench Integrated Interface Board +software license

mini acdp clone 2012 bmw x5 dme 1 mini acdp clone 2012 bmw x5 dme 2

Procedure:

Step 1: Prepare ACDP, OBP+ ICP adapter, interface board and DME

mini acdp clone 2012 bmw x5 dme 3

Step 2: Connect the interface board correctly to the DME interface

mini acdp clone 2012 bmw x5 dme 4

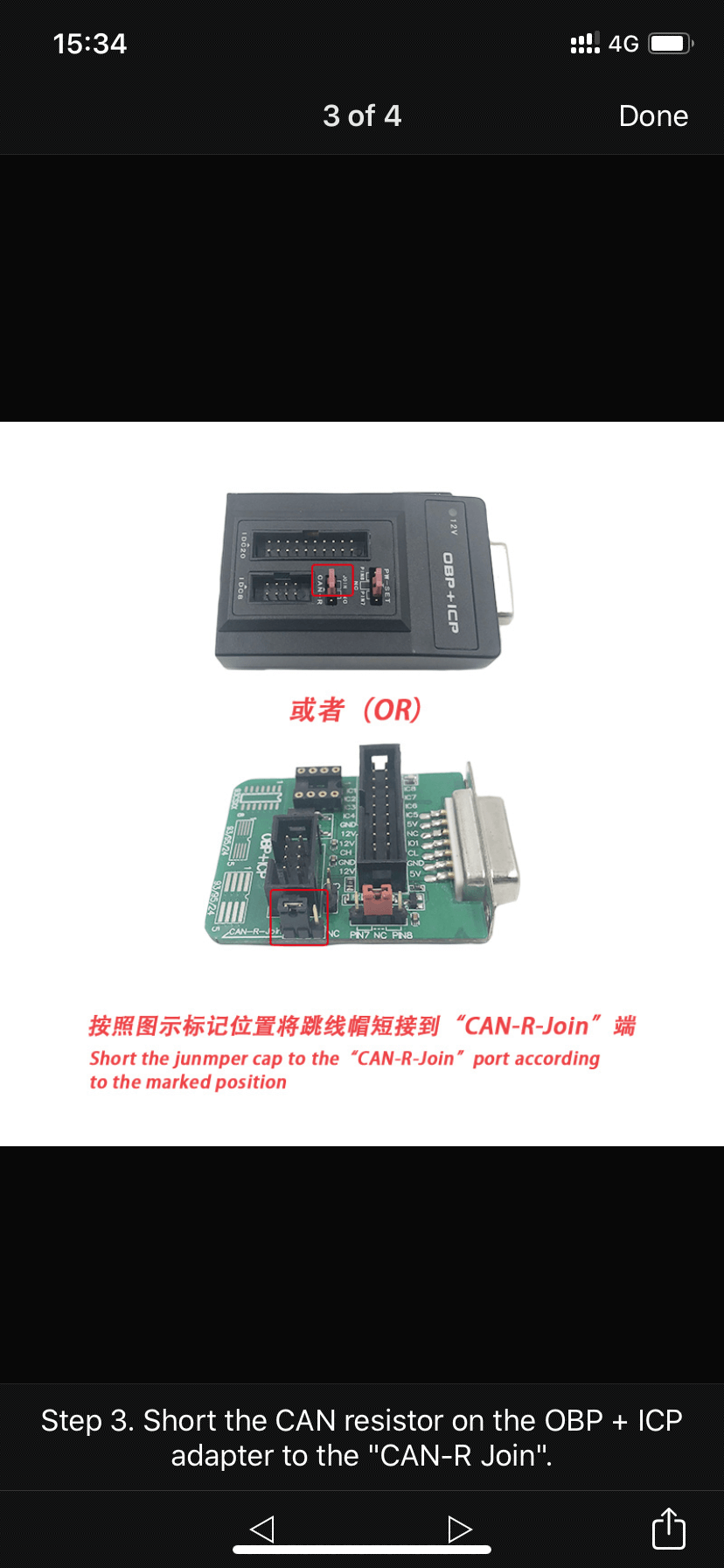

Step 3: Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”

mini acdp clone 2012 bmw x5 dme 5

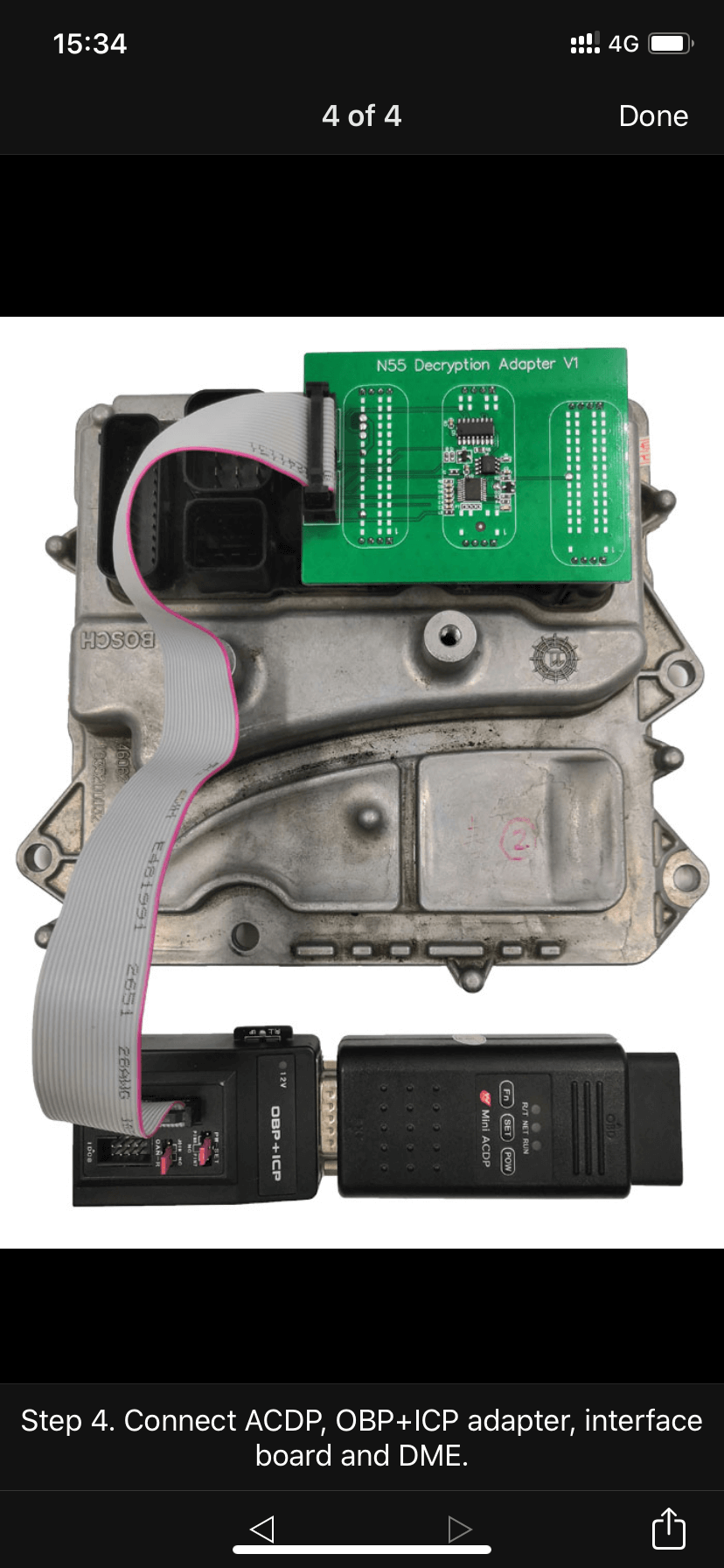

Step 4: Connect ACDP, OBP+ ICP adapter, interface board and DME

mini acdp clone 2012 bmw x5 dme 6

Step 5: Enter Mini ACDP APP

Select BMW-> ECU Clone

mini acdp clone 2012 bmw x5 dme 7 mini acdp clone 2012 bmw x5 dme 8

1.Read /write EEPROM

2.Read/Write PFLASH

mini acdp clone 2012 bmw x5 dme 9

Tap N55 (MEVD172)->Fxx

mini acdp clone 2012 bmw x5 dme 10 mini acdp clone 2012 bmw x5 dme 11

Then follow the instruction on the screen to operate

That’s all!
