Yanhua Solderless Adapter with Digimaster 3 for Mileage Programming Tutorials

Yanhua Solderless Adapter with Digimaster 3 for Mileage Programming Tutorials: With one extra 19usd Yanhua Single Probe Solderless Connector, Digimaster 3 can program mileage without soldering, without risk. For example, 2008 Nissan Altima etc.

Look at Yanhua Solderless adapter:

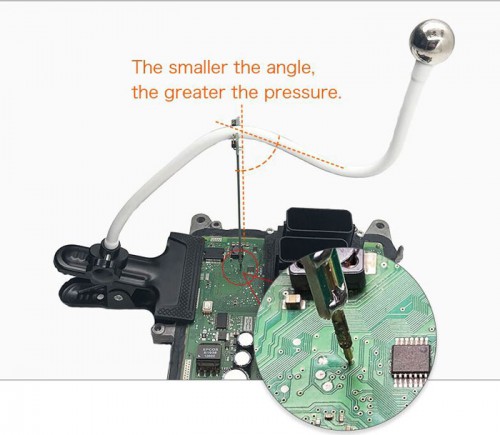

yanhua single probe solderless connector 00



Capabilities:

  1. provide solderless connections during in-circuit programming(ICP) testing
  2. Connect the BOOT point when open DME shell to read ISN code

Features:

  1. Excellent versatility: compared with the traditional ECU worktable, it is compact in size, easy to carry, has multiple fixing modes,

more suitable for outdoor or indoor work

  1. Simple and high efficiency operation: the connection can be simply completed by pulling and pressing
  2. modular design: free switch among single point connection, multi-points connection and combination connection

yanhua solderless connector 01

Let’s hit the nail on the head: how to use Digimaster 3 with Yanhua Solderless Adapter.

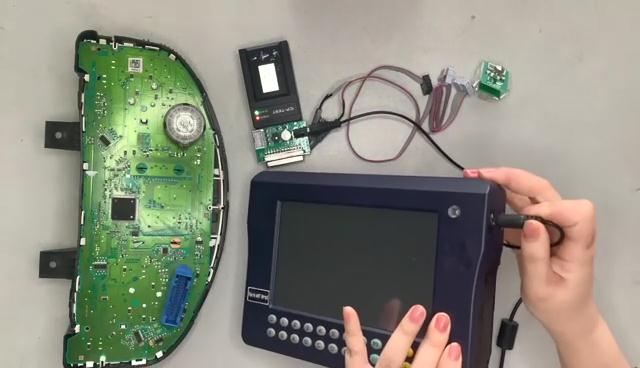

Connect Digimaster3 and Yanhua Solderless adapter using the power cables.

yanhua solderless connector 02

Then connect the chip and Yanhua Solderless adapter using chip clip or Puncture socket

The red line is required to match Pin 1 of the chip.

yanhua solderless connector 03

Choose the corresponding chip model through “Choose” on the adapter.

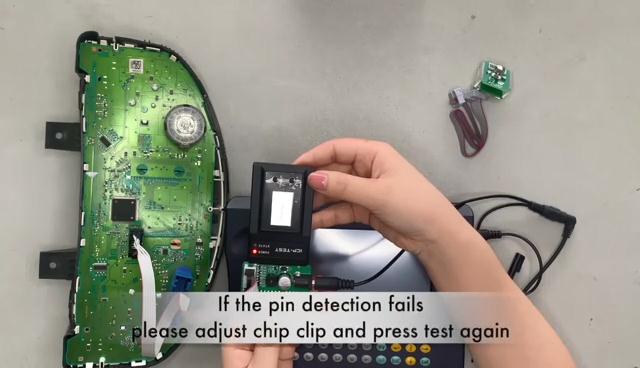

For example, if the dashboard computer is from 2009 Volkswagen Bora and chip number is 24C32, then choose 24XXX, and press test, start pin detection. If the pin detection fails, please adjust chip clip and press test again.

When the pin detection passes, connect the adapter and Digimaster3.

yanhua solderless connector 04 yanhua solderless connector 05 yanhua solderless connector 06 yanhua solderless connector 07 yanhua solderless connector 08

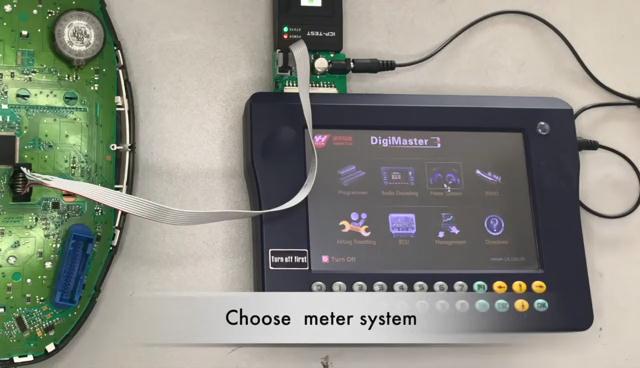

Go to Digimaster3 menu, select “Meter System”.

yanhua solderless connector 08 1

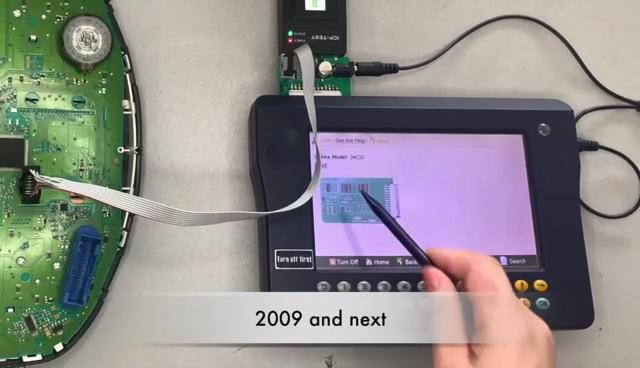

Select “Europe”, then “Volkswagen”, then “Bora”, then “18G920826”, then “2009” and next.

yanhua solderless connector 09

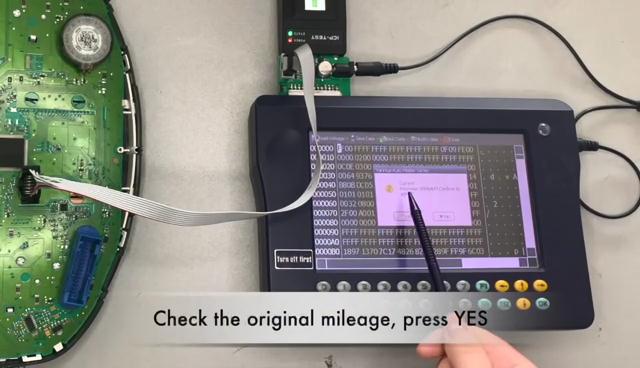

Check the original mileage, press “Yes”.

yanhua solderless connector 10 yanhua solderless connector 11

Save the original data.

yanhua solderless connector 12

Now we are able to program the new mileage, then choose ok.

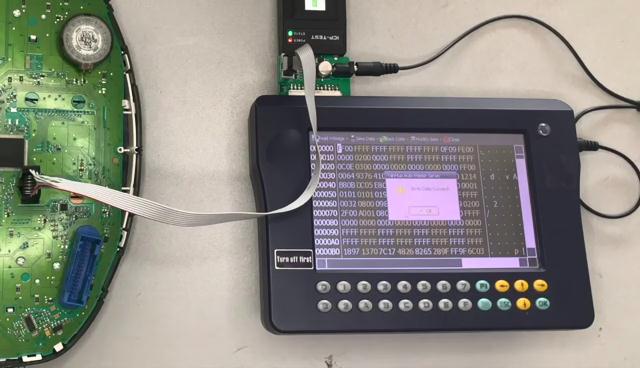

Okay, program new data successfully.

yanhua solderless connector 13

Okay, guys, this is on how to use Yanhua Solderless adapter with Digimaster 3 to program the mileage without soldering.

Author: Yanhua MiniACDP
