Yanhua ACDP Module 21 For VW Audi Gearbox Mileage Correction

Update: Yanhua Mini ACDP Module 21 VW Audi Gearbox Mileage Calibration for DQ200(0AM/0CW), DQ250(02E/0D9), DL382 (0CK), VL381(0AW).

MODULE21

ACDP Module 21 Features:

  1. OBD quick identify the gearbox model without dismantling the gearbox ECU for query.
  2. Use the dedicated interface board to plug the original port to adjust the mileage without dismantling the gearbox ECU.

Look at the following image showing the dedicated adapters to use (including DQ250, DQ200, VL381, DL382) as well as the software screenshot.

Note:

Mini ACDP Module 21 interface boards include: DQ200, DQ250, DL382, VL381 (has no DL501)

Mini ACDP Module 13 interface boards include: DQ200, DQ250, DL382, VL381, DL50

yanhua acdp module 13 interface board 00

– If  you have Module 13 for the VW Audi gearbox clone, and want to  add the gearbox mileage correction function, just pay for a software license, no need to buy module 21 interface boards.

– If  you do not have module 13 and want to change the mileage of the VW Audi gearbox only, not want to clone the gearbox for VW Audi, just purchase Module 21.

ACDP Module 21 Step-by-step procedure:

Click on “VW”;

Click on “Gearbox mileage correction”;

Select any of VW, Audi, Seat, Skoda etc.

For example, enter “VW” and select any of DQ200(0AM/0CW), DQ250(02E/0D9), DL382 (0CK).

Select “DQ200(0AM)”, then “DQ200_Dxx”, then have options: identify, mileage correction (auto mode), mileage correction (simple step mode), read EEPROM, write EEPROM etc.

yanhua acdp module 21 02 yanhua acdp module 21 03 yanhua acdp module 21 04 yanhua acdp module 21 05 yanhua acdp module 21 06 yanhua acdp module 21 07

Enter “Audi” and select any of DQ200(0AM/0CW), DQ250(02E/0D9), DL382 (0CK), VL381(0AW).

yanhua acdp module 21 08

Then Seat options: DQ200(0AM/0CW), DQ250(02E/0D9).

yanhua acdp module 21 09

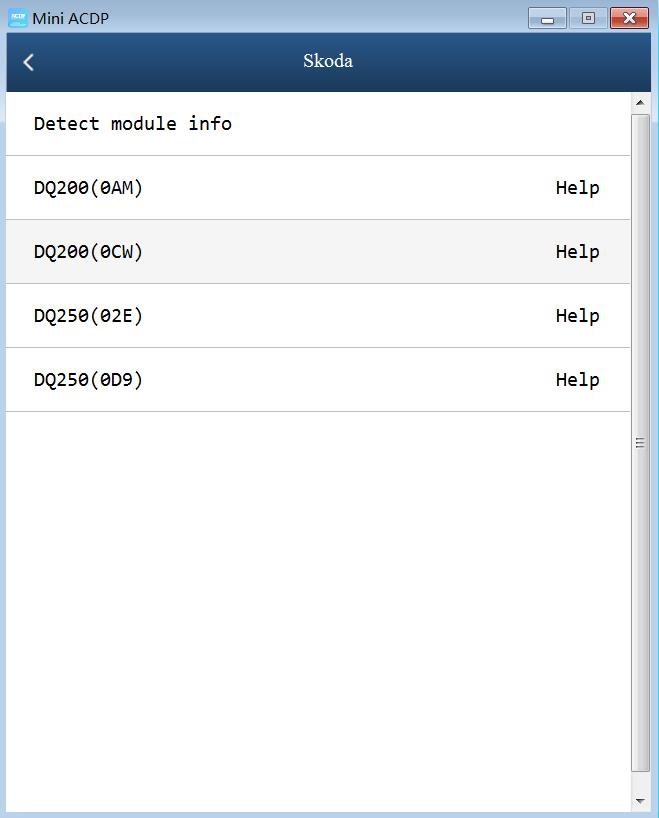

Then Skoda options: DQ200(0AM/0CW), DQ250(02E/0D9).

yanhua acdp module 21 10

Alright, before operating the software, please connect the dedicated interface board, modules and Yanhua Mini ACDP box.

Here are some images to follow.

Part 1. DQ200(0AM/0CW) Hardware Connection.

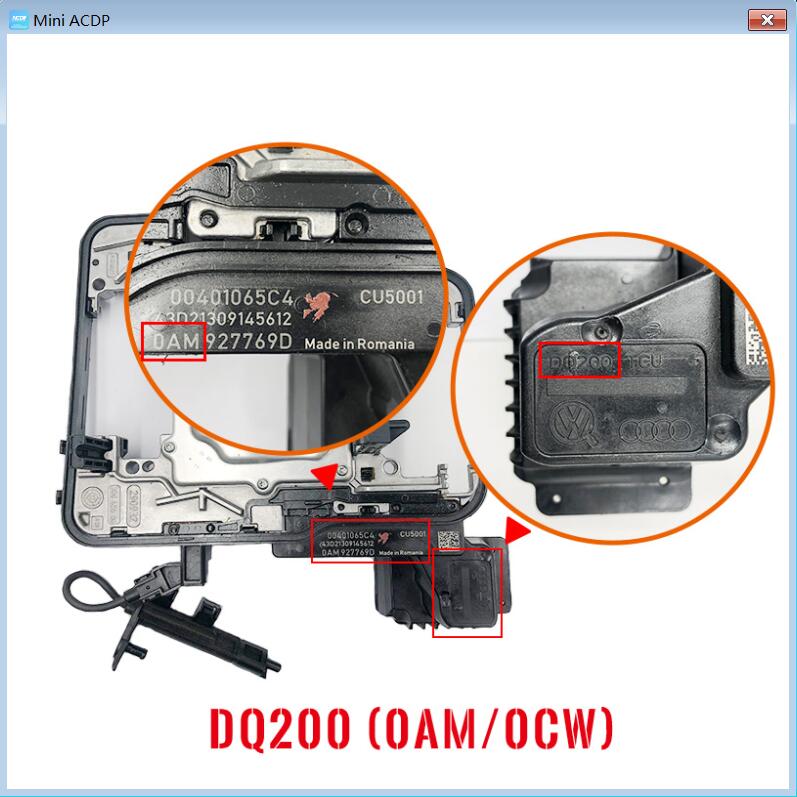

Please confirm the model and serial number.

yanhua acdp module 21 11

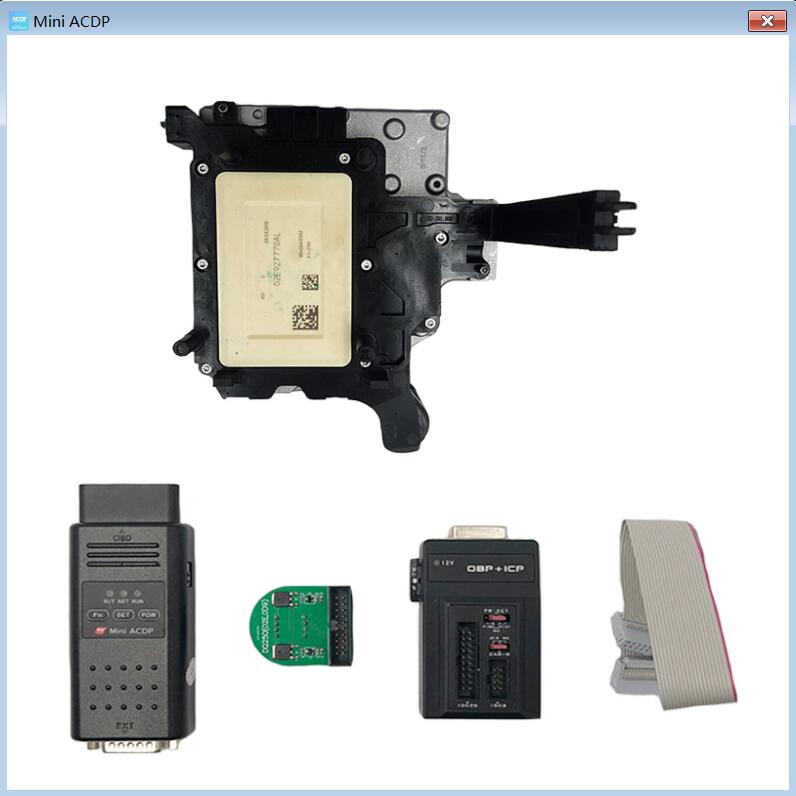

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and VAG.

yanhua acdp module 21 12

Step 2. Connect the interface board correctly to the VAG interface as shown.

yanhua acdp module 21 13

Step 3. Connect the CAN resistor.

yanhua acdp module 21 14

Step 4. Connect ACDP, OBP+ICP adapter, interface board and VAG.

yanhua acdp module 21 15

Part 2. DQ250(02E/0D9) Hardware Connection

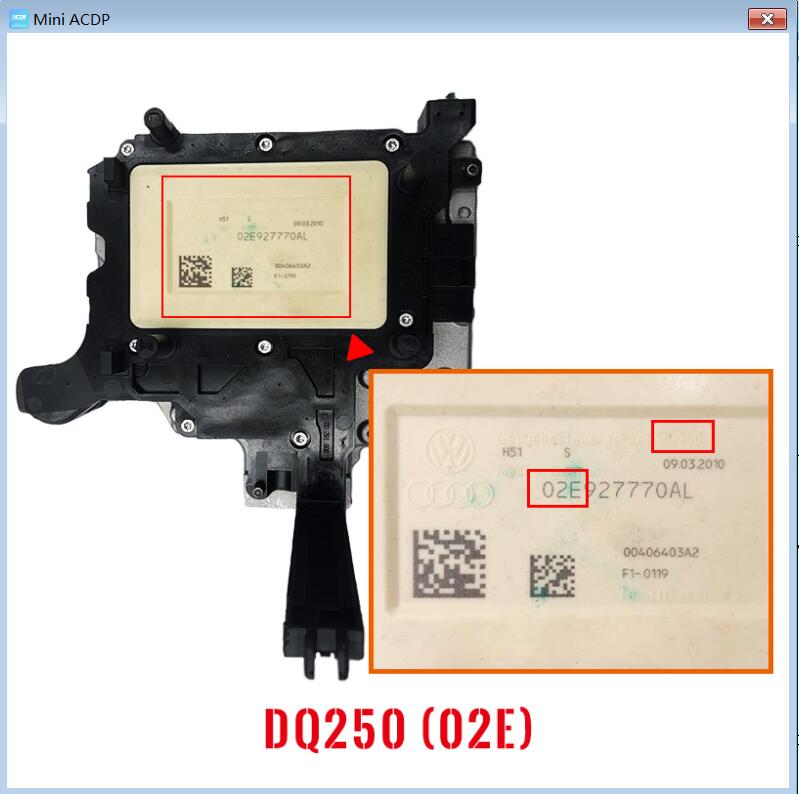

Please confirm the model and serial number.

yanhua acdp module 21 16

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and VAG.

yanhua acdp module 21 17

Step 2. Connect the interface board correctly to the VAG interface as shown.

yanhua acdp module 21 18

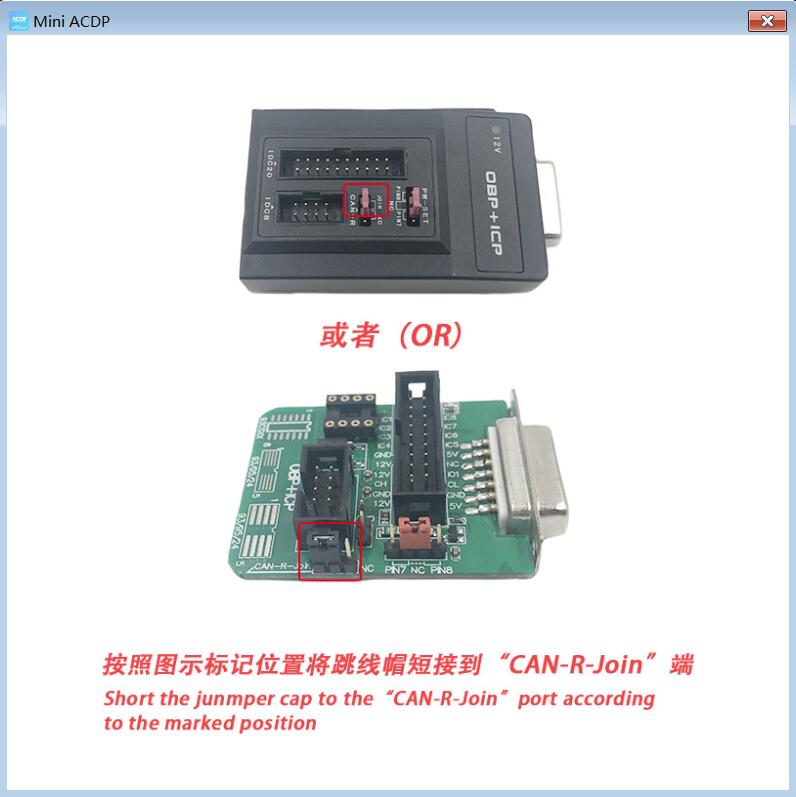

Step 3. Connect the CAN resistor.

yanhua acdp module 21 19

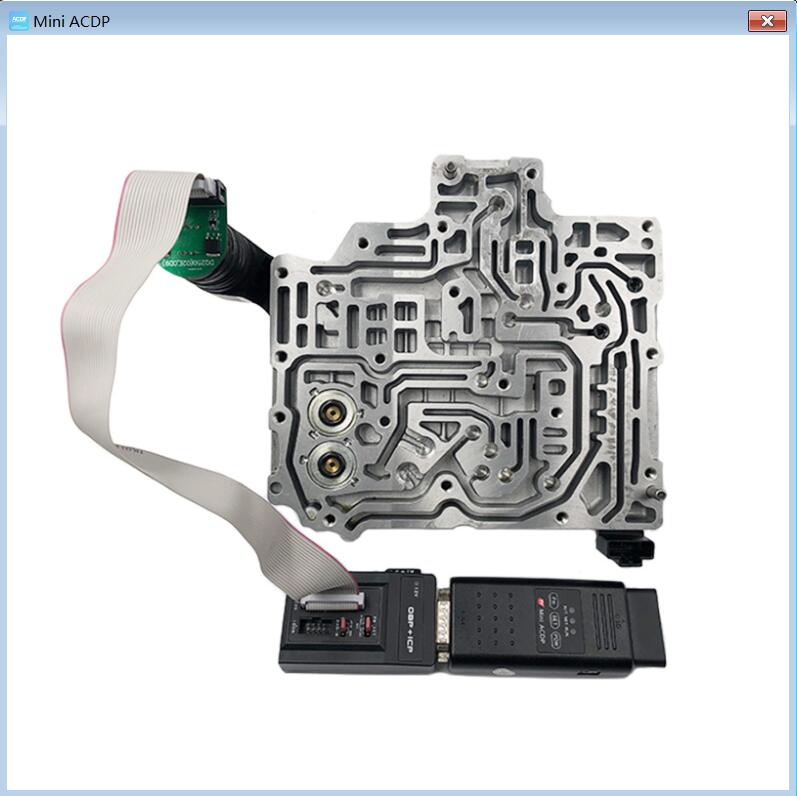

Step 4. Connect ACDP, OBP+ICP adapter, interface board and VAG.

yanhua acdp module 21 20

For the hardware connection of DL382 (0CK), VL381(0AW), there is “Help” guide in the Mini ACDP APP to follow, and the steps are similar to that of the above DQ200(0AM/0CW) and DQ250(02E/0D9).

Look at VL381(0AW) model with serial number.

yanhua acdp module 21 21

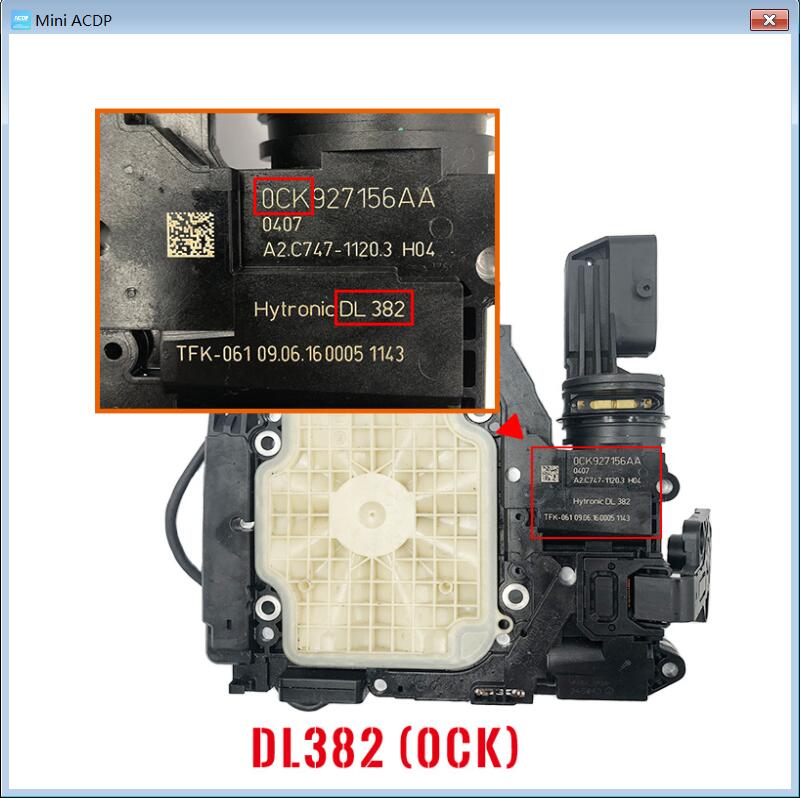

And DL382 (0CK) model with serial number.

yanhua acdp module 21 22

Author: Yanhua MiniACDP
