How to clean Yanhua ACDP CAS Test Point

Five Steps to Clean Yanhua ACDP CAS test point:

1、When Yanhua Mini ACDP Master reading CAS3/CAS4 data by ICP, the pins detection shows unreliable contact. As shown in the following picture:

test point1 en

2、Find the location of the bad contacted test points according to the help document in APP.
test point2 en test point3 en

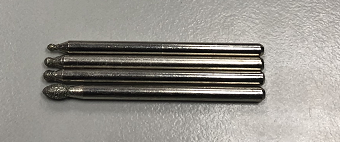

3、Remove the interface board and use the Conformal coating cleaning probes to clean up the test points.

test point4

4、When cleaning the test point, use the Conformal coating cleaning probes to align the test point and rotate 1-2 turns. Do not put force when cleaning test points in order to avoid damaging the test points.

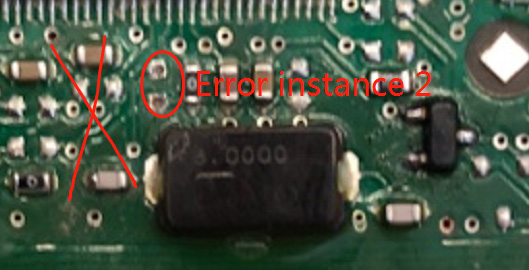

test point5 en test point6 en test point7 en test point8 en

5、Reconnect the interface board for pin detection and data reading

test point9 en
