How does Yanhua Mini ACDP Program Key to BMW CAS3+ by ICP?

With ACDP BMW CAS module 1, Yanhua Mini ACDP can support CAS3+/3++,CAS4/CAS+ key programming and mileage reset by ICP. Read and write data without lifting the pin, no need removing any components, detect intelligently! Here mainly share the guide to program key to BMW CAS3+.

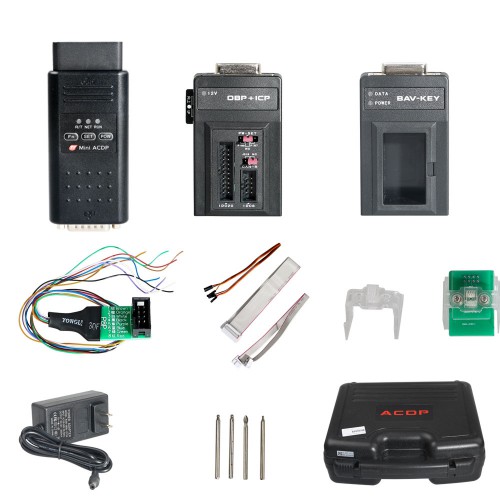

Preparation:

ACDP host

OBP + ICP

Copper pillar

20 pin cable

BAV- KEY

Blank key

mini acdp program bmw cas3 1

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-basic-moduel.html

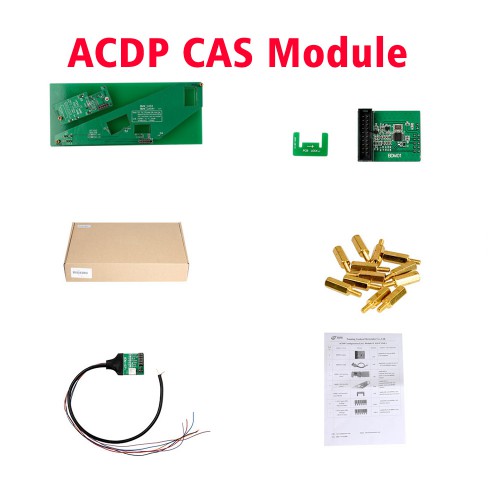

BMW CAS module (module 1)

mini acdp program bmw cas3 2

http://www.yanhuaacdp.com/wholesale/yanhua-mini-acdp-bmw-cas-module.html

Note: If you have a new Yanhua CAS module with QR, you can obtain the corresponding authorization on Mini ACDP APP by yourself, instead of offering the SN of your ACDP to distributor.

Procedure:

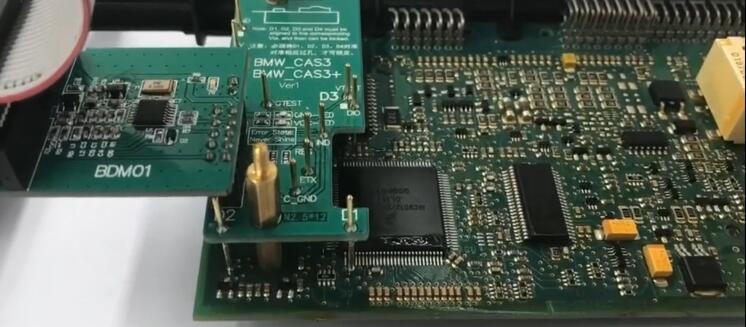

Connect ACDP, BDM adapter and BMW CAS3+ ECU

mini acdp program bmw cas3 3 mini acdp program bmw cas3 4

Open Mini ACDP APP

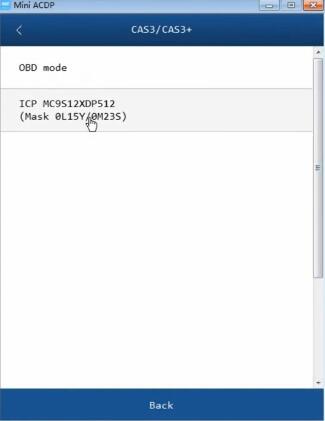

Select “BMW”-> “CAS3/CAS3+” -> “ICP MC9S12XDP512 (mask 0L15Y/0m23S)”

mini acdp program bmw cas3 5

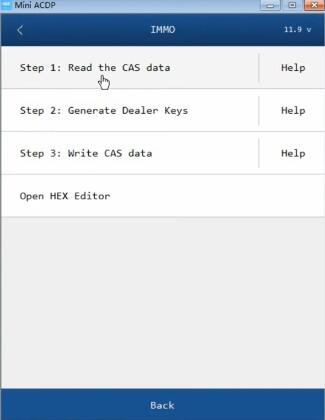

Main IMMO key programming steps:

Step 1: Read the CAS data

Step 2: Generate dealer keys

mini acdp program bmw cas3 6

In detail…

Step 1: Read the CAS data

A message will prompt to connect all the devices well

If connected, just click “OK” to next step

Detecting pin…

Detect IND, RES, DI0, 5V and GND connect well

mini acdp program bmw cas3 7

Decoding the memory…

Reading memory…

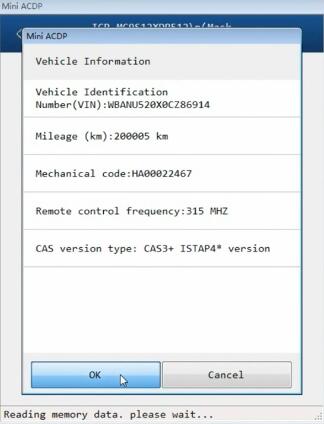

Confirm vehicle info read out

mini acdp program bmw cas3 8

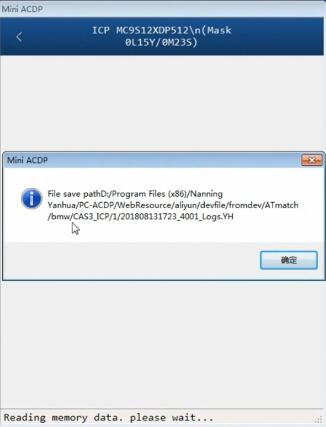

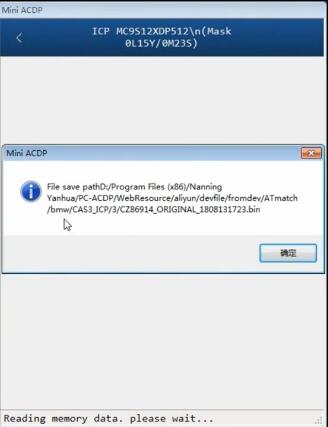

Save the CAS data

mini acdp program bmw cas3 10 mini acdp program bmw cas3 9

Read CAS data is completed

Step 2: Generate dealer keys

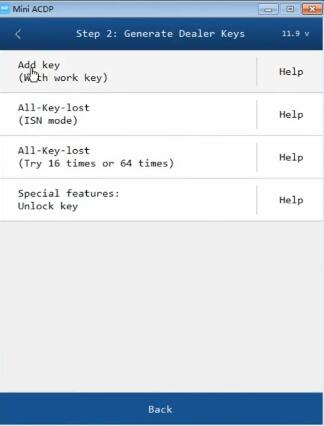

Select “Add key (with work key)”

mini acdp program bmw cas3 11

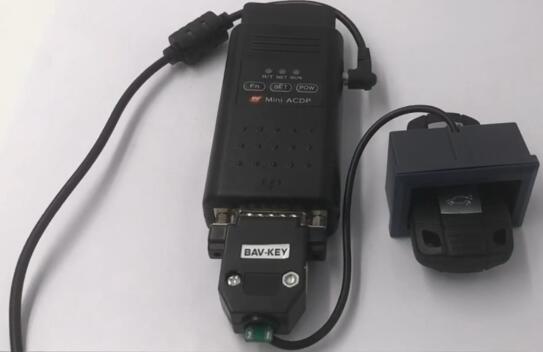

Follow the prompt to connect ACDP host and BAV adapter and insert a blank key

mini acdp program bmw cas3 12

Reading key info…

Read out the key ID and confirm it’s a blank key

mini acdp program bmw cas3 13

Select one original key data

mini acdp program bmw cas3 14

Confirm the vehicle info incl. VIN, mechanical code, remote control frequency and CAS version type

mini acdp program bmw cas3 15

Remove the blank key from the BAV adapter and plug the smart key

mini acdp program bmw cas3 16

Read out the smart key ID

mini acdp program bmw cas3 17

Put the blank key instead of the smart key into the BAV adapter

Select one key position unused from the key list

mini acdp program bmw cas3 18

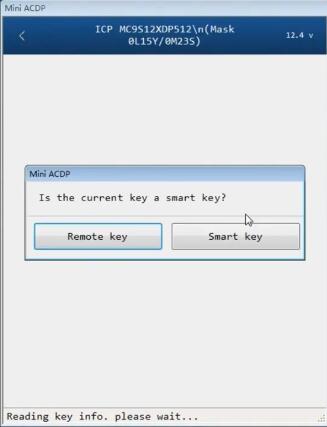

Confirm the key is remote or smart

mini acdp program bmw cas3 19

Make sure the blank key has been put into the adapter

Generating dealer key…

Save the CAS data incl. the info of programmed key and new key

Mini ACDP add new key to CAS3+ successfully!

mini acdp program bmw cas3 20

Attach the related video for reference clearly!

Hope it helps you!

Author: Yanhua MiniACDP
