Mini ACDP Clone Gearbox on Audi VL381 (0AW) Without Soldering

ACDP Module 13-VW/Audi Gearbox Clone supports VW (Volkswagen), Audi DQ200 (0AM / 0CW), DQ250 (02E / 0D9), DL382 (0CK), DL501 (0B5), VL381 (0AW) models and etc. This post will share the test report on Audi VL381 (0AW) gearbox clone.

This is Audi VL381 (0AW) gearbox

mini acdp clone gearbox audi vl381 0aw 1

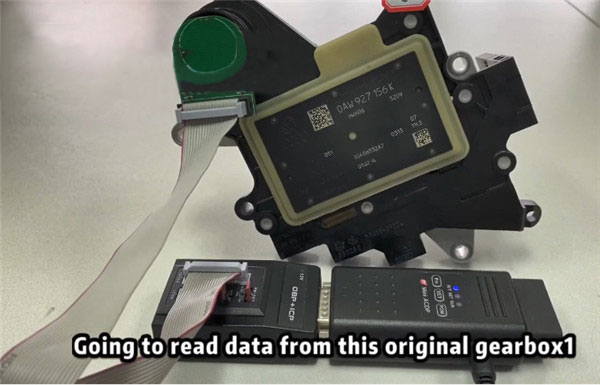

Plug the Yanhua ACDP module 13-VL381 interface board into gearbox

Make sure the red cap on OBP+ICP adapter is in JOIN position

Connect Mini ACDP with OBP+ICP adapter and connect to module 13 via cable

mini acdp clone gearbox audi vl381 0aw 2

Start to read data from this original gearbox 1

Select VW-> Gearbox Clone-> Audi-> VL381 (0AW)-> Full Backup

mini acdp clone gearbox audi vl381 0aw 3

Read out the system info is VL381

mini acdp clone gearbox audi vl381 0aw 4

Then read PFLASH and EEPROM data

Save the chip data read out

mini acdp clone gearbox audi vl381 0aw 5

Next, plug module 13 into the donor gearbox 2

mini acdp clone gearbox audi vl381 0aw 6

Select “Full Write”

Confirm the system info and continue

Select the original backup file to write

mini acdp clone gearbox audi vl381 0aw 7

Write data successfully

mini acdp clone gearbox audi vl381 0aw 8

Result: Yanhua Mini ACDP with module 13 have success in gearbox clone on Audi VL381 (0AW)
