How to refresh BMW keys by Yanhua ACDP

Yanhua Mini ACDP with OBP to refresh BMW Keys Operation Guide:

Open Mini ACDP APP

Go to “HELP”

Pay attention to the key frequency and key code

yanhua mini acdp refresh bmw keys 1 yanhua mini acdp refresh bmw keys 2

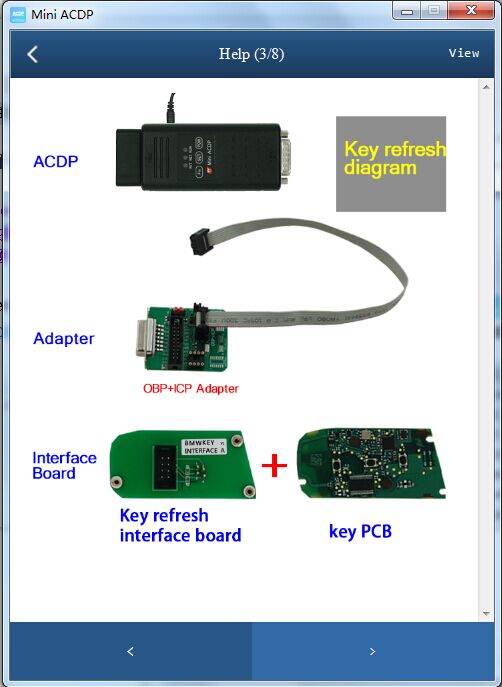

BMW key refresh diagram (all the devices need):

YANHUA Mini ACDP

OBP+ICP Adapter

BMW key interface board

Key PCB

yanhua mini acdp refresh bmw keys 3

Probe location diagram 1

Different numbers marked represent different installation position

yanhua mini acdp refresh bmw keys 4

Probe location diagram 2

yanhua mini acdp refresh bmw keys 5

Insert the copper pillar into the corresponding position

yanhua mini acdp refresh bmw keys 6

Aim at the probes accurately, and then lock the copper pillar

yanhua mini acdp refresh bmw keys 7

Connect Mini ACDP host via OBP+ICP adapter

yanhua mini acdp refresh bmw keys 8

Done!

Author: Yanhua MiniACDP
